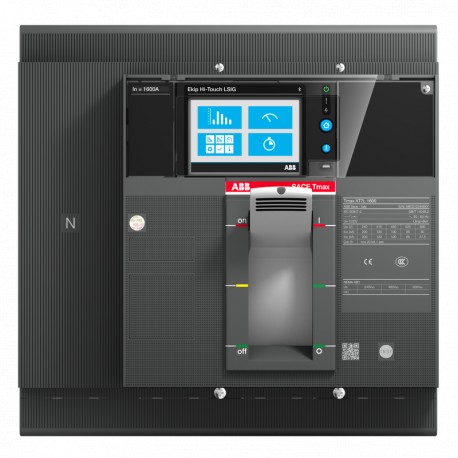

1SDA101147R1 ABB XT7S 1000 Ekip Hi-Touch LSIG 1000A 4p FF
1SDA101147R1
101147
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb XT7S 1000 Ekip Hi-Touch LSIG 1000A 4p FF molded case circuit breaker serves as a critical protective device within major industrial electrical architectures, offering precise trip characteristics to prevent damage from overloads and short circuits. These components ensure system safety by rapidly isolating faulted zones while keeping healthy circuits energized.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2357
- Environmental Product Declaration - EPD: 9AKK108468A1895
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 64.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: b425e9bd-cfb4-43d9-b527-8552581bea2e Italy
- Simplified SCIP: c1397180-6232-4c71-9e57-630a8ff45af0 Germany
- Ambient Air Temperature: Operation -40 ... 125 °C
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT7SE410DUFF000XXX
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | b425e9bd-cfb4-43d9-b527-8552581bea2e Italy |
| Simplified SCIP | c1397180-6232-4c71-9e57-630a8ff45af0 Germany |
| 65ce73dd-9d08-4923-9516-c23b8aeaee53 Norway | |
| 67cd0a6b-c47e-40cc-8bf6-29cab7db2d82 Denmark | |
| ff1edae3-7d80-4658-9359-5fc51536ab8b Spain | |
| 0996d30e-c0d5-49cd-a0d5-e5b00394a7e2 Finland | |
| 6517cd0f-24ab-43b5-b1a7-e72654ea56b9 Germany | |
| d8ea56e0-af20-4f12-9aae-65bdb6bf0f1c Greece | |
| 5f552dbe-9520-4773-8804-d4b91c396f46 Netherlands | |
| 38d92241-1ab8-4a9a-a34a-38c0d088190b Germany | |
| 09ad5ecb-acf3-462c-89a1-8d1b1f583b4a Germany | |
| 793a24b3-2673-4f42-8e4b-5092532099b2 Portugal | |
| 138ebe20-a334-4313-9f03-30d1fba6bc50 Croatia | |
| 5f552dbe-9520-4773-8804-d4b91c396f46 Netherlands | |
| 2e0edb58-c273-449e-b815-2899c857bb90 Czech Republic | |
| 01626c85-dc07-4e93-8550-4e4b5d3999c4 Bulgaria | |
| 138ebe20-a334-4313-9f03-30d1fba6bc50 Croatia | |
| 0d11278c-4ae6-442a-9d76-86a4d96671e1 France | |
| 65ce73dd-9d08-4923-9516-c23b8aeaee53 Norway | |
| d8ea56e0-af20-4f12-9aae-65bdb6bf0f1c Greece | |
| 42933b8b-136b-4283-b955-762da9867371 Sweden | |
| cc56c62b-499c-4dc6-8811-41dc6673813e Germany | |
| ff1edae3-7d80-4658-9359-5fc51536ab8b Spain | |
| b4a69d2b-2018-436a-b13c-72fe9a888e4f Hungary | |
| 1d455e0d-3eb7-4ffe-a428-71876b8e3dc3 France | |
| 23797e29-4272-4d26-8ef7-7a9345b5b36c Poland | |
| b4a69d2b-2018-436a-b13c-72fe9a888e4f Hungary | |
| e72d2d6e-6e82-4c71-8074-125fc28c231a Hungary | |
| d52a5677-86fe-4d62-a26b-6af81ca94993 Belgium | |
| b1f0810c-a9cc-4864-bc9e-92d835068f3e Estonia | |
| e72d2d6e-6e82-4c71-8074-125fc28c231a Hungary | |
| b1f0810c-a9cc-4864-bc9e-92d835068f3e Estonia | |
| 0d11278c-4ae6-442a-9d76-86a4d96671e1 France | |
| 38d92241-1ab8-4a9a-a34a-38c0d088190b Germany | |
| 42933b8b-136b-4283-b955-762da9867371 Sweden | |
| 1d455e0d-3eb7-4ffe-a428-71876b8e3dc3 France | |
| 09ad5ecb-acf3-462c-89a1-8d1b1f583b4a Germany | |
| 6fa6a593-ad56-4b62-a2c3-60e603349780 Poland | |
| a886dd90-f974-4531-89a4-ae3c6dea2262 Sweden | |
| 01626c85-dc07-4e93-8550-4e4b5d3999c4 Bulgaria | |
| cc56c62b-499c-4dc6-8811-41dc6673813e Germany | |
| dc077a66-2833-415b-a96f-5ac7c2983bc1 Belgium | |
| 67cd0a6b-c47e-40cc-8bf6-29cab7db2d82 Denmark | |
| 23797e29-4272-4d26-8ef7-7a9345b5b36c Poland | |
| 793a24b3-2673-4f42-8e4b-5092532099b2 Portugal | |
| d52a5677-86fe-4d62-a26b-6af81ca94993 Belgium | |
| 23298fcb-1e00-460b-8b06-b0e41e001db8 Poland | |
| 6517cd0f-24ab-43b5-b1a7-e72654ea56b9 Germany | |
| 0996d30e-c0d5-49cd-a0d5-e5b00394a7e2 Finland | |
| dc077a66-2833-415b-a96f-5ac7c2983bc1 Belgium | |
| c1397180-6232-4c71-9e57-630a8ff45af0 Germany | |
| 6fa6a593-ad56-4b62-a2c3-60e603349780 Poland | |
| 23298fcb-1e00-460b-8b06-b0e41e001db8 Poland | |
| a886dd90-f974-4531-89a4-ae3c6dea2262 Sweden | |
| 2e0edb58-c273-449e-b815-2899c857bb90 Czech Republic | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7SE410DUFF000XXX |
| EAN | 8056221014502 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221014502 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 37 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | Ekip Hi-Touch LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
