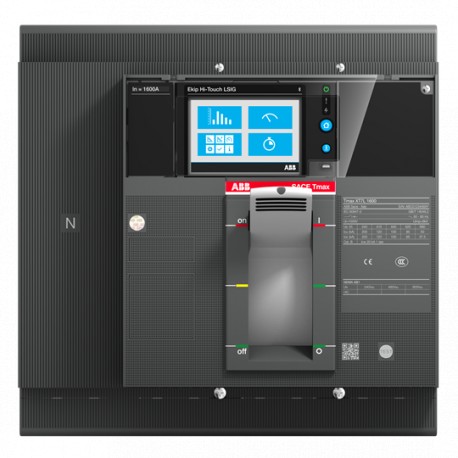

1SDA101141R1 ABB XT7S 1600 Ekip Touch Meas.LSIG 1600 4pFF
1SDA101141R1
101141
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB XT7S 1600 Ekip Touch Meas.LSIG 1600 4pFF molded case circuit breaker delivers advanced electronic trip unit monitoring and precise fault protection for demanding industrial power systems. Electrical engineers specify these high-performance breakers to safeguard heavy-duty machinery and maintain selective coordination across complex networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2357
- Environmental Product Declaration - EPD: 9AKK108468A1895
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 64.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 529d2501-72c5-4280-a316-02ee86ba8b12 Italy
- Simplified SCIP: afda41cc-fc2d-448d-8d00-5db77bb03dc5 Germany
- Ambient Air Temperature: Operation -40 ... 125 °C
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT7SE416FSFF000XXX
- EAN: 8056221014441
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 529d2501-72c5-4280-a316-02ee86ba8b12 Italy |
| Simplified SCIP | afda41cc-fc2d-448d-8d00-5db77bb03dc5 Germany |
| ab2d4b75-1281-4de3-a581-bed3901d909a Belgium | |
| 7610d052-d751-46ba-9105-ca3a06e6da72 Spain | |
| 280b863e-f613-4257-a52e-3fd04e858afe Hungary | |
| 29584eb8-c3ba-42eb-b595-189de3c09dfc France | |
| 162d0b57-6594-4e3b-8feb-bd5895621f51 Germany | |
| 1838200e-afb8-42a8-9e2b-783eda770102 Germany | |
| c3476767-8e4c-4bc7-8e94-8bb1eb30d3fc Germany | |
| 17e79a12-47c7-4490-8d3d-93f87ac2cb66 Denmark | |
| 7ce6041b-2250-48ee-a5bb-60d9e7bf3261 Germany | |
| 63c75922-b5e3-46bd-a132-b6936004b59c France | |
| e80b3e42-b323-47a1-baaa-119eac1d4cf8 Belgium | |
| 1040fcf7-27a3-4c4d-b7a4-421245c4f105 Sweden | |
| 25c32942-7250-4419-9fb7-9132aab77232 Estonia | |
| b3d587e0-3581-458b-aaee-c74717dce15f Finland | |
| 2a2654c6-ba6b-4179-88fb-75a94c5ab809 Norway | |
| b578548c-1519-4c93-827d-3cea09baa6c0 Hungary | |
| 9188cd7a-a0f1-4507-ae24-2c0873d16c68 Poland | |
| 33e74f48-bde0-4645-8cb6-87a1304f2f08 Czech Republic | |
| 56d083a8-144b-4c77-afc3-f30ae8bf97b2 Poland | |
| 1e859fde-f78a-4716-88e7-2ad552132446 Poland | |
| 04819029-c709-4889-a384-05036eea1aea Netherlands | |
| d7491c0a-9b7e-4e79-ba02-cbe3ffe7cd9d Croatia | |
| d2f0f5bb-c8d6-4231-96c9-0cf9e9aeb128 Bulgaria | |
| aa5b4eb4-d13d-4e35-8dae-f2b5fd8f8f54 Sweden | |
| 5e1db117-f68d-472e-9cbb-5faae8840c03 Portugal | |
| 7f3f3ceb-71ab-444e-9941-fb5c86f64c30 Greece | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7SE416FSFF000XXX |
| EAN | 8056221014441 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221014441 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 94 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Release | Ekip Touch Measuring LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
