> ABB > Molded case "Isomax-Tmax" > 101127

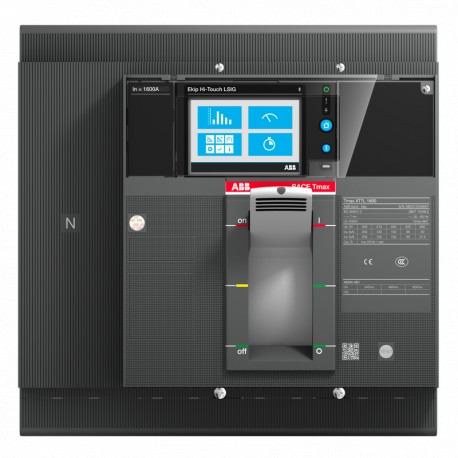

ABB 1SDA101127R1 1SDA101127R1 ABB XT7S 1000 Ekip Touch LSI In 1000A 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA101127R1 ABB XT7S 1000 Ekip Touch LSI In 1000A 4p F F

1SDA101127R1

101127

ABB

1 Pcs.

XT7S 1000 Ekip Touch LSI In=1000A 4p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2357
Environmental Product Declaration - EPD9AKK108468A1895
9AKK108468A4404
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 64.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP3130b5b9-e663-41a2-8d26-84d0ef1216a1 Italy
Simplified SCIP41ab180a-ec4c-4447-96a2-b322729c325c France
977fe50a-6cc9-4ace-b1bf-c66e622a19f0 Belgium
b2538831-84b5-4121-b193-d6a1d3cdf347 Finland
cde1a0b1-eb0c-4670-85ba-17fd0fc28b4b Poland
e66f245c-91c8-46fd-9c94-77319fbc4d11 Spain
5cfb73b6-2c41-4141-940c-fa06985bf791 Belgium
068c2251-5699-4246-8c40-9a303021cb35 Norway
d4bd5b8c-5e17-4b7d-bd9f-450e59876985 Denmark
37e90017-c9e0-49e4-a41c-888fcef2564c Bulgaria
1792d62e-d3fc-4baa-82b4-81580b5ace2f Germany
5cfb73b6-2c41-4141-940c-fa06985bf791 Belgium
a13a5127-2f6b-4489-be41-140b77f33996 Germany
b2538831-84b5-4121-b193-d6a1d3cdf347 Finland
1792d62e-d3fc-4baa-82b4-81580b5ace2f Germany
38e22072-1455-4016-9e4a-d72f0005a097 Sweden
c143de6a-beb2-4a7d-aa4c-27542ba838fc Germany
9a736060-474a-4512-8b28-e44fca0af51e Czech Republic
d4bd5b8c-5e17-4b7d-bd9f-450e59876985 Denmark
cde1a0b1-eb0c-4670-85ba-17fd0fc28b4b Poland
c143de6a-beb2-4a7d-aa4c-27542ba838fc Germany
7e11ba4a-e271-4bf5-91f4-580fa1f5d8e3 Greece
9fe2828e-62ba-4b65-a622-cd285184aeab Poland
8eba5a13-8596-4c27-a6d4-9a44fc392ede Portugal
0a03ac55-f495-4ede-a534-cd98e437b884 France
a13a5127-2f6b-4489-be41-140b77f33996 Germany
068c2251-5699-4246-8c40-9a303021cb35 Norway
b84a0b34-4050-4bfe-a50c-bcbf3ebab9fe Croatia
7e11ba4a-e271-4bf5-91f4-580fa1f5d8e3 Greece
4f0e167a-b079-42c3-becb-514266fd8e2a Poland
8eba5a13-8596-4c27-a6d4-9a44fc392ede Portugal
1a9e54ba-7525-4008-b1e1-77f36807b5c0 Germany
1970b0d8-68f9-4c44-835c-44175d56444b Germany
213318d6-707b-4767-a259-6f7ef58996e3 Sweden
51aab0b9-bf60-40ec-80e8-06616c1056ca Netherlands
1970b0d8-68f9-4c44-835c-44175d56444b Germany
1a9e54ba-7525-4008-b1e1-77f36807b5c0 Germany
16383d42-c724-491a-898e-8afd88f1fe9c Hungary
41ab180a-ec4c-4447-96a2-b322729c325c France
e66f245c-91c8-46fd-9c94-77319fbc4d11 Spain
977fe50a-6cc9-4ace-b1bf-c66e622a19f0 Belgium
e84eb07f-e6b1-406f-b469-a99ddd62aafa Estonia
38e22072-1455-4016-9e4a-d72f0005a097 Sweden
4f0e167a-b079-42c3-becb-514266fd8e2a Poland
213318d6-707b-4767-a259-6f7ef58996e3 Sweden
0a03ac55-f495-4ede-a534-cd98e437b884 France
37e90017-c9e0-49e4-a41c-888fcef2564c Bulgaria
51aab0b9-bf60-40ec-80e8-06616c1056ca Netherlands
b84a0b34-4050-4bfe-a50c-bcbf3ebab9fe Croatia
9a736060-474a-4512-8b28-e44fca0af51e Czech Republic
5de2ad0d-4311-4c62-8c43-a470f81bf4ed Hungary
e84eb07f-e6b1-406f-b469-a99ddd62aafa Estonia
5de2ad0d-4311-4c62-8c43-a470f81bf4ed Hungary
9fe2828e-62ba-4b65-a622-cd285184aeab Poland
16383d42-c724-491a-898e-8afd88f1fe9c Hungary
Environmental
Ambient Air TemperatureOperation -40 ... 125 °C
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT7SE410DPFF000XXX
E-Number (Norway)4380826
EAN8056221014304
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width280 mm
Product Net Height268 mm
Product Net Depth / Length166 mm
Product Net Weight12.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width360 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight14 kg
Package Level 1 EAN8056221014304
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1390
1SDH002065A1338
Technical
Current TypeAC
Electrical Durability3000 cycle
60 cycles per hour
Mechanical Durability10000 cycle
60 cycles per hour
Number of Poles4P
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 37 W
Rated Current (In)1000 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 45 kA
(525 V AC) 45 kA
(690 V AC) 30 kA
Rated Uninterrupted Current (Iu)1000 A
ReleaseEkip Touch LSI
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT7
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107046A9648
EU Data Act Compliance Declaration1SDH002560A1001
Mechanical Drawings1SDH002013A1101
Wiring Diagram1SDM000002A1001
Instructions and Manuals1SDH002013A1001
1SDH002013A1002
1SDH001821A1001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA101127R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 1000 A
Rated voltage (EF003977) 690 V
Overload release current setting (EF002336) 1000 A
Adjustment range short-term delayed short-circuit release (EF007129) 10000 A
Adjustment range undelayed short-circuit release (EF007131) 1500.0 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 4
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20
