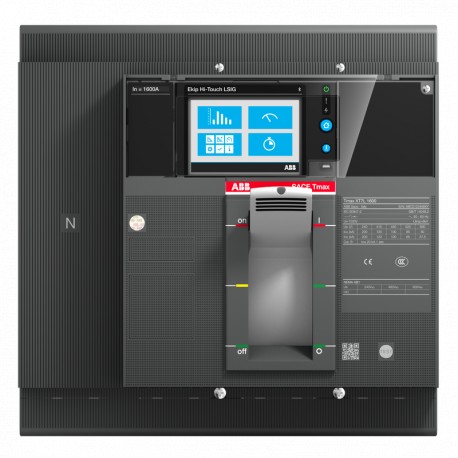

1SDA101126R1 ABB XT7S 800 Ekip Touch LSI In 800A 4p F F
1SDA101126R1
101126
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA101126R1 XT7S 800 Ekip Touch LSI In 800A 4p F F is an electronic trip molded case circuit breaker designed for heavy industrial power distribution. High-ampacity breakers provide critical system protection, interrupting major fault currents to prevent equipment failure and ensure workplace safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2357
- Environmental Product Declaration - EPD: 9AKK108468A1895
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 64.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 03e283dc-ccec-437a-ae3d-beecf82adafd Italy
- Simplified SCIP: 3c1d1046-38c8-4f3f-b8cd-fcc25a65c213 Sweden
- Ambient Air Temperature: Operation -40 ... 125 °C
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT7SE480CPFF000XXX
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 03e283dc-ccec-437a-ae3d-beecf82adafd Italy |
| Simplified SCIP | 3c1d1046-38c8-4f3f-b8cd-fcc25a65c213 Sweden |
| 2ff60e5b-d7dc-4baa-9607-123da6a54d49 Netherlands | |
| 85edbabc-8579-4a32-8d98-0b3e67e8a58b Belgium | |
| e73909d2-be02-442e-9333-8bcf384748be Estonia | |
| 2a8b9b16-8a40-4955-8bff-b0c6f79dcb26 Hungary | |
| 4abeac7d-7483-471e-a91e-406c1f9935f7 Hungary | |
| 21b9951a-2ccc-4422-80d4-4886ea9b657b Poland | |
| 8c8e3ac0-94ef-473a-b50b-d67607bae779 France | |
| 4abeac7d-7483-471e-a91e-406c1f9935f7 Hungary | |
| e73909d2-be02-442e-9333-8bcf384748be Estonia | |
| bd8ce833-5c22-4208-a1cf-f47117751890 Czech Republic | |
| 2ff60e5b-d7dc-4baa-9607-123da6a54d49 Netherlands | |
| 71c0d8b5-38a6-4b45-835a-29a0911615ed Bulgaria | |
| 345df8cf-caf9-4209-a641-33b1c0b1a03a Germany | |
| 5e2932f5-c1d0-43e4-ba5a-8dacbb02701b Germany | |
| 3c1d1046-38c8-4f3f-b8cd-fcc25a65c213 Sweden | |
| b79967b9-0a62-4579-9aff-4e15f2d802b8 France | |
| a43e61e9-ff47-4485-9054-6dc34e7c184d Sweden | |
| 91451ad9-350c-46fe-ba5b-6402afd3d769 Poland | |
| a29207ad-1bb6-4c62-b310-cf9dfda04d13 Portugal | |
| 8db7d15f-0e79-40fe-9448-8bcddad62439 Greece | |
| 21b9951a-2ccc-4422-80d4-4886ea9b657b Poland | |
| 538f3b00-7ad7-4931-ba94-6337afe8d1d4 Germany | |
| 1a044717-679c-4672-be08-adf826f8712d Spain | |
| 2f96bb6a-33af-4be2-8b08-0c9de12114bb Poland | |
| a43e61e9-ff47-4485-9054-6dc34e7c184d Sweden | |
| 6ccfe80d-953d-4d0f-a2fc-0acf9c65d919 Belgium | |
| 9718f9b2-e0d3-4c30-bc80-588d4742facd Finland | |
| 2f96bb6a-33af-4be2-8b08-0c9de12114bb Poland | |
| d9b3155c-aa19-4846-a51d-8e3480c94f2e Denmark | |
| a6a5637e-eb0d-441a-88d8-ff54e7182bcf Germany | |
| 538f3b00-7ad7-4931-ba94-6337afe8d1d4 Germany | |
| bd8ce833-5c22-4208-a1cf-f47117751890 Czech Republic | |
| d9b3155c-aa19-4846-a51d-8e3480c94f2e Denmark | |
| 71c0d8b5-38a6-4b45-835a-29a0911615ed Bulgaria | |
| 6e43555a-1b55-4471-9b6f-f4f367f26cb8 Germany | |
| 9718f9b2-e0d3-4c30-bc80-588d4742facd Finland | |
| 6ccfe80d-953d-4d0f-a2fc-0acf9c65d919 Belgium | |
| 85edbabc-8579-4a32-8d98-0b3e67e8a58b Belgium | |
| 975bc81a-024e-4b05-8181-17151596e3a7 Norway | |
| a6a5637e-eb0d-441a-88d8-ff54e7182bcf Germany | |
| 1a044717-679c-4672-be08-adf826f8712d Spain | |
| 2a8b9b16-8a40-4955-8bff-b0c6f79dcb26 Hungary | |
| 8c8e3ac0-94ef-473a-b50b-d67607bae779 France | |
| e7dc89ba-9eef-45ab-b8b4-83eb02d0fc5a Croatia | |
| 345df8cf-caf9-4209-a641-33b1c0b1a03a Germany | |
| a29207ad-1bb6-4c62-b310-cf9dfda04d13 Portugal | |
| 5e2932f5-c1d0-43e4-ba5a-8dacbb02701b Germany | |
| b79967b9-0a62-4579-9aff-4e15f2d802b8 France | |
| 975bc81a-024e-4b05-8181-17151596e3a7 Norway | |
| 91451ad9-350c-46fe-ba5b-6402afd3d769 Poland | |
| e7dc89ba-9eef-45ab-b8b4-83eb02d0fc5a Croatia | |
| 8db7d15f-0e79-40fe-9448-8bcddad62439 Greece | |
| 6e43555a-1b55-4471-9b6f-f4f367f26cb8 Germany | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7SE480CPFF000XXX |
| E-Number (Norway) | 4380825 |
| EAN | 8056221014298 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221014298 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 24 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Touch LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| 1SDH001821A1001 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
