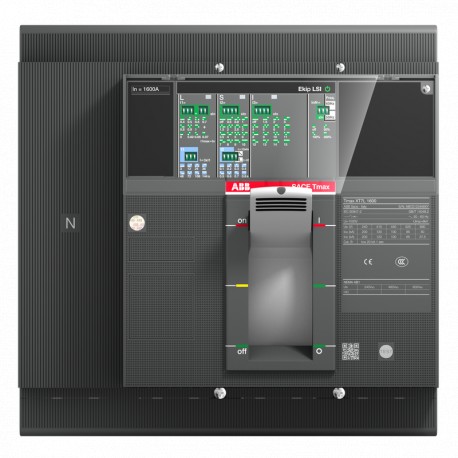

1SDA101119R1 ABB XT7S 1000 Ekip Dip LSI In 1000A 4p F F
1SDA101119R1
101119
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for multi-pole electrical distribution defense, the ABB XT7S 1000 Ekip Dip LSI In 1000A 4p F F operates as a robust molded case circuit breaker. Such devices are implemented in central power architectures to safeguard extensive electrical networks against destructive fault currents.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2357
- Environmental Product Declaration - EPD: 9AKK108468A1895
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 64.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: e0c044a7-99d0-4b79-a6d6-45f9e76b7116 Italy
- Simplified SCIP: 72b86c02-a031-464d-8c3c-cd0001b45271 Netherlands
- Ambient Air Temperature: Operation -40 ... 125 °C
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT7SE410DFFF000XXX
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | e0c044a7-99d0-4b79-a6d6-45f9e76b7116 Italy |
| Simplified SCIP | 72b86c02-a031-464d-8c3c-cd0001b45271 Netherlands |
| d4a2cf5f-d6a2-46df-987b-8da5ab748daa Sweden | |
| a0fe3f3d-5bdf-4a42-bdae-5d504320d3f3 Hungary | |
| 9a4d51be-83ac-463b-a2eb-2c9a1c980687 Hungary | |
| 81978c4e-18b5-4c46-a8d2-01f01b88dc23 Belgium | |
| 64ac7eac-248c-4ef1-8cb3-db8dd79abbfe Estonia | |
| d624c6c4-db8a-4c44-8491-322556719fa8 France | |
| 0d01672e-cae8-4f82-9a11-0ea100d2963a Poland | |
| 64ac7eac-248c-4ef1-8cb3-db8dd79abbfe Estonia | |
| a0fe3f3d-5bdf-4a42-bdae-5d504320d3f3 Hungary | |
| 5c4a47cc-8779-45e1-b81f-6fc6c26382f5 Bulgaria | |
| 72b86c02-a031-464d-8c3c-cd0001b45271 Netherlands | |
| fd8b013f-f8e2-46fe-b4f0-2b27ab98a64b Czech Republic | |
| 5aae19d3-bf37-4a79-8e85-182da08f851e Germany | |
| d4a2cf5f-d6a2-46df-987b-8da5ab748daa Sweden | |
| 62adbe15-9797-4e29-a3ef-a28d23fdcf64 Germany | |
| 789ef970-2f66-471b-8e0f-af783fcc83aa France | |
| b74655b7-b4e3-4e83-a481-8f9b8b5a9fe2 Poland | |
| 066d779b-aaea-4d8f-8d9b-eae3415de79b Sweden | |
| 3d6fef48-5e48-4929-a7a1-74a96d50b26e Portugal | |
| 6a17b175-19aa-4a25-855f-3e8a8c5974be Greece | |
| aa1506d1-9ac3-490f-a738-f37ff7835f64 Germany | |
| 0d01672e-cae8-4f82-9a11-0ea100d2963a Poland | |
| 4642b6bb-33a2-4d3a-a48e-88b62181ee11 Poland | |
| 059c8152-234b-41f3-9a0d-7aad930653f0 Spain | |
| 3ea21418-df93-468b-8b93-6a7d3a7c1d5a Germany | |
| 17721bb7-3ca6-4ea7-9b1a-7359d5568ad4 Belgium | |
| 066d779b-aaea-4d8f-8d9b-eae3415de79b Sweden | |
| 251f7e98-5c0d-430e-b943-28c715c31954 Finland | |
| aa1506d1-9ac3-490f-a738-f37ff7835f64 Germany | |
| fd8b013f-f8e2-46fe-b4f0-2b27ab98a64b Czech Republic | |
| e08e6f8d-842e-49be-af43-8082095b251a Denmark | |
| 4642b6bb-33a2-4d3a-a48e-88b62181ee11 Poland | |
| 17721bb7-3ca6-4ea7-9b1a-7359d5568ad4 Belgium | |
| 02bb4438-8543-4802-a6c9-1d4d235148bd Norway | |
| 81978c4e-18b5-4c46-a8d2-01f01b88dc23 Belgium | |
| 251f7e98-5c0d-430e-b943-28c715c31954 Finland | |
| 3ea21418-df93-468b-8b93-6a7d3a7c1d5a Germany | |
| 8e7b07ee-a4ed-4ecb-aa80-53f4a13dc33b Germany | |
| 5c4a47cc-8779-45e1-b81f-6fc6c26382f5 Bulgaria | |
| e08e6f8d-842e-49be-af43-8082095b251a Denmark | |
| 059c8152-234b-41f3-9a0d-7aad930653f0 Spain | |
| d624c6c4-db8a-4c44-8491-322556719fa8 France | |
| 9a4d51be-83ac-463b-a2eb-2c9a1c980687 Hungary | |
| 5aae19d3-bf37-4a79-8e85-182da08f851e Germany | |
| 3d6fef48-5e48-4929-a7a1-74a96d50b26e Portugal | |
| 3145949f-37cf-4bd0-8b5d-60a7f7734229 Croatia | |
| 62adbe15-9797-4e29-a3ef-a28d23fdcf64 Germany | |
| 3145949f-37cf-4bd0-8b5d-60a7f7734229 Croatia | |
| 6a17b175-19aa-4a25-855f-3e8a8c5974be Greece | |
| b74655b7-b4e3-4e83-a481-8f9b8b5a9fe2 Poland | |
| 789ef970-2f66-471b-8e0f-af783fcc83aa France | |
| 02bb4438-8543-4802-a6c9-1d4d235148bd Norway | |
| 8e7b07ee-a4ed-4ecb-aa80-53f4a13dc33b Germany | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7SE410DFFF000XXX |
| E-Number (Norway) | 4380818 |
| EAN | 8056221014229 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221014229 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 37 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
