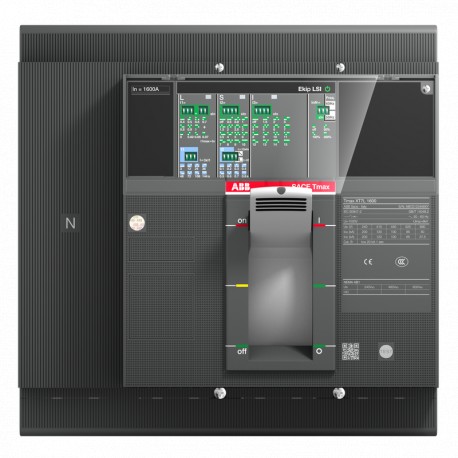

1SDA101116R1 ABB XT7S 1250 Ekip Dip LS/I In 1250A 4p F F
1SDA101116R1
101116
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB XT7S 1250 Ekip Dip LS/I In 1250A 4p F F functions as a high-performance molded case circuit breaker built to provide reliable overload and short-circuit protection in heavy electrical panels. Industrial systems depend on these robust breakers to disconnect faulty circuits instantly.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2357
- Environmental Product Declaration - EPD: 9AKK108468A1895
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 64.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: d7a83739-8d12-443c-8d8a-168aeb130713 Italy
- Simplified SCIP: db16357f-a548-40d9-b149-3270fd321e89 Germany
- Ambient Air Temperature: Operation -40 ... 125 °C
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT7SE412EEFF000XXX
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | d7a83739-8d12-443c-8d8a-168aeb130713 Italy |
| Simplified SCIP | db16357f-a548-40d9-b149-3270fd321e89 Germany |
| 1f9171f4-4f08-483f-9444-d0f3c6585027 Netherlands | |
| 9ba88f3a-67f5-47c3-93b2-b6a747a86325 Germany | |
| e21e101e-e93b-43f1-8f36-f1c84033b567 Denmark | |
| f4f760e8-f490-4125-8b04-b8d880a6e1fb Germany | |
| c9082471-5f24-47ca-bbf1-447fcbda2949 Croatia | |
| 2e2a5615-193f-4849-934c-19539df01660 Poland | |
| 9625b39b-4db9-4d9c-8b4e-a1c40aff8442 Norway | |
| ba4fc65f-cf6d-4023-bf44-b5081b1aae02 Finland | |
| 338e5209-8661-43a1-b3fb-2f799a0c259d Netherlands | |
| de75d50c-0ca5-4eb2-8c0d-86fc08480924 Czech Republic | |
| 9699817a-bb5b-4806-adfb-9913473ccf2c Poland | |
| 6dc3a2d8-4f70-45ea-bae7-9be1ce2ff131 Netherlands | |
| 6e482252-f764-448b-af32-310dabdb6fea Netherlands | |
| 5c9dcd79-7c0b-41fc-95de-d95a950fee33 Estonia | |
| ff0a4625-6231-4f13-8aea-ce9877f6a106 Greece | |
| 3a143e7a-6664-4071-8fcd-6c075c125c10 Portugal | |
| c914ddd5-b4fc-4371-adaa-e5ec6cfeeae8 Bulgaria | |
| ac4bcdca-9a7c-467e-b0d8-98f141d8b763 Sweden | |
| 9958aeca-d552-4efe-b598-43fa1129adcc Poland | |
| 6e6d1b38-8140-4255-91cc-9c2b6d8b0efd France | |
| de01630c-954e-42a1-b65a-ae64a4cf4cf3 Sweden | |
| d7e9e9a7-8274-41e5-b5c6-d23422acb75e Germany | |
| cdee2dd4-56bd-4c45-b316-fda60ba949ce Germany | |
| ff17c7e8-708e-48e6-9712-07db730bc329 France | |
| f762f97f-160a-4bcd-8d75-459d332e58c1 Netherlands | |
| ae0b8804-d668-4ff4-8cbf-b84334caef52 Spain | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7SE412EEFF000XXX |
| E-Number (Norway) | 4380815 |
| EAN | 8056221014199 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 17.67 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 18.6 kg |
| Package Level 1 EAN | 8056221014199 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 57 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
