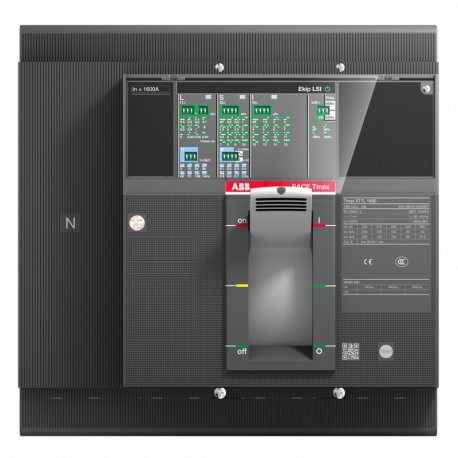

1SDA101114R1 ABB XT7S 800 Ekip Dip LS/I In 800A 4p F F
1SDA101114R1
101114
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SDA101114R1 ABB XT7S 800 Ekip Dip LS/I In 800A 4p F F operates as a robust molded case circuit breaker designed to handle heavy electrical loads in industrial power distribution networks. It provides dependable overload and short-circuit protection for complex facility infrastructure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2357
- Environmental Product Declaration - EPD: 9AKK108468A1895
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 64.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: c08f42bb-3c17-4a44-b99a-c72b234f836d Italy
- Simplified SCIP: 14db456c-8695-4ea4-b751-a6bd2f8a41ab Poland
- Ambient Air Temperature: Operation -40 ... 125 °C
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT7SE480CEFF000XXX
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | c08f42bb-3c17-4a44-b99a-c72b234f836d Italy |
| Simplified SCIP | 14db456c-8695-4ea4-b751-a6bd2f8a41ab Poland |
| 8ac08eaa-7dfc-4127-aa38-bb0d87d360b2 Hungary | |
| 4b898d61-3967-4aab-a44b-e0b17baa8e95 Belgium | |
| bf91e8a4-8477-4c80-a559-75a4bd05b165 France | |
| 8d20cccf-8f94-4558-9137-e694b018dc09 Sweden | |
| 6e97b747-8eca-4d7d-ba5c-67dcdca32391 Poland | |
| e8ffe73f-e10e-43ef-ab44-7f0ff1faa420 Poland | |
| d62034ea-8c30-4c8c-b8a2-9a405d5aad10 Finland | |
| 31c480c3-e7aa-47ad-aff4-2bf142ac665d Germany | |
| 072b283c-fb28-47e2-9ef7-85804c05598f Portugal | |
| 12765108-cbc0-4e37-9bbc-45d0d845d794 Spain | |
| 2163b838-7a01-4b3b-858b-a62b65f2fc68 Belgium | |
| 679452ab-77ea-4549-b477-2b49554ada8b Germany | |
| 2f75c0bd-5d84-4828-9d63-ba2f04832109 Norway | |
| cb8e627c-998c-49ac-aa2e-8c9f8162c86f Bulgaria | |
| d5785ca9-58d9-49b0-862a-03d2d0061f2b Netherlands | |
| 1c0670fd-a6c0-488d-8f30-2bdd20ed6ae4 Germany | |
| b8caeca2-2c62-4b22-90e7-df1bcdbf801e Estonia | |
| 57716185-41e6-405b-8a7c-f3516c5241ee Czech Republic | |
| 35451dae-4e81-48f3-9ce1-75a953259a9a France | |
| 925a5c8a-dd52-4008-880f-2460b9be7f9a Croatia | |
| a47d692d-695b-423b-b5bb-4f61aed853a9 Germany | |
| 703e0a97-74df-47b8-882b-2f7b2a5a84ae Sweden | |
| b979fc66-2aa6-4432-bb64-7c889e75ef6e Greece | |
| c75e56a9-b855-42d8-b635-b97874991169 Hungary | |
| 90ab5b97-fb72-45eb-9c8d-3a660f1ae6b5 Germany | |
| 4b4cae16-82f5-42f9-ad4f-20ba6317e461 Denmark | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7SE480CEFF000XXX |
| E-Number (Norway) | 4380813 |
| EAN | 8056221014175 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 12.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221014175 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1390 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 24 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 45 kA | |
| (525 V AC) 45 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
