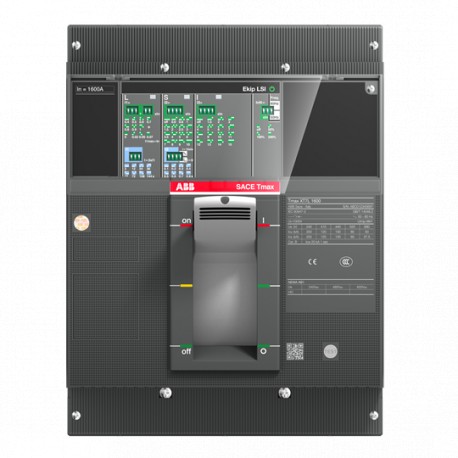

ABB 1SDA100956R1 1SDA100956R1 ABB XT7L 1250 Ekip Dip LS/I In 1250A 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA100956R1 ABB XT7L 1250 Ekip Dip LS/I In 1250A 3p F F

1SDA100956R1

100956

ABB

1 Pcs.

XT7L 1250 Ekip Dip LS/I In=1250A 3p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2357
Environmental Product Declaration - EPD9AKK108468A1895
9AKK108468A4404
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 64.1 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP31d8fcac-6882-4919-94a6-150fe8c7391c Italy
Simplified SCIP6e830ae8-9f22-475e-94bd-7eb526e5f7ca Denmark
fb6bf1c5-0bb7-42f7-9f2e-6cb45783a925 Sweden
5bf449a7-9629-4097-a52f-36d785d3323d Germany
d1e1f201-9a1d-4571-80ac-711b5f92cc7a Belgium
da4927ab-8ae4-44ea-ade2-01d1a759b115 Spain
8d8f2b1e-76a2-4435-9c94-08b12b9c0bca Hungary
b09349cf-da5e-45a6-9ab6-5b059f46e773 Belgium
142c4017-2fe5-4341-b93d-0ebf5be10f69 Finland
c4d66b09-e4ac-445e-a755-8f68a91e409d Poland
50c75c5f-4e40-4cd0-8e0c-a0d2437aedd7 Sweden
8d43e3ff-d26d-4285-a8a7-5c8afb77289d Hungary
fc4fbf29-d0ab-4470-acee-3266591768da Greece
0cbfb93b-516f-4984-86fd-affa857cef9c France
f41fca2a-a2b8-460c-ba4d-dfec0b16729b Germany
2da55d11-d576-4570-ab4e-a33df19f0b21 Portugal
522d2c4d-d6d2-4351-acbb-18a3d60f5417 Poland
e9e7f5eb-efd5-403f-9689-4cc6eebf9233 Germany
e92b6569-c8f8-4848-9602-fa61ebb7992b Bulgaria
d98b284d-367a-4103-820c-2f7c0b6c86d2 Poland
ff6eab1e-3f1e-458b-b819-3331774cdd43 Norway
1b705611-9893-4a6d-8e63-3f1f9e60e534 Estonia
6441d298-0d7a-4093-b06d-a712a21984c7 Czech Republic
5f5a18f7-b324-4427-84fa-e2d9082d3259 Germany
ed12b902-c22e-4855-a5a4-8ea1742f0e34 France
0e4fe7d4-f018-4e4b-8071-d422ac68985f Germany
2d0bfd90-31cd-46a3-a17d-18c52b3f08e0 Croatia
478d6f72-f5df-45db-9f0f-a78f582c99f8 Netherlands
Environmental
Ambient Air TemperatureOperation -40 ... 125 °C
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT7LE312EEFF000XXX
E-Number (Norway)4380681
EAN8056221010108
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width210 mm
Product Net Height268 mm
Product Net Depth / Length166 mm
Product Net Weight13.585 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width280 mm
Package Level 1 Height350 mm
Package Level 1 Depth / Length360 mm
Package Level 1 Gross Weight14.3 kg
Package Level 1 EAN8056221010108
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1336
1SDH002065A1338
Technical
Current TypeAC
Electrical Durability3000 cycle
60 cycles per hour
Mechanical Durability10000 cycle
60 cycles per hour
Number of Poles3P
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 57 W
Rated Current (In)1250 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 200 kA
(230 V AC) 200 kA
(240 V AC) 200 kA
(380 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(525 V AC) 65 kA
(690 V AC) 50 kA
Rated Short-time Withstand Current Low Voltage (Icw)20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 200 kA
(230 V AC) 200 kA
(240 V AC) 200 kA
(380 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(525 V AC) 65 kA
(690 V AC) 50 kA
Rated Uninterrupted Current (Iu)1250 A
ReleaseEkip Dip LS/I
Release TypeEL
Short-Circuit Performance LevelL
StandardsIEC60947-2
Sub-typeXT7
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107046A9648
Mechanical Drawings1SDH002013A1101
Wiring Diagram1SDM000002A1001
Instructions and Manuals1SDH002013A1001
1SDH002013A1002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA100956R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 1250 A
Rated voltage (EF003977) 690 V
Overload release current setting (EF002336) 1250 A
Adjustment range short-term delayed short-circuit release (EF007129) 1250 A
Adjustment range undelayed short-circuit release (EF007131) 1250 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
