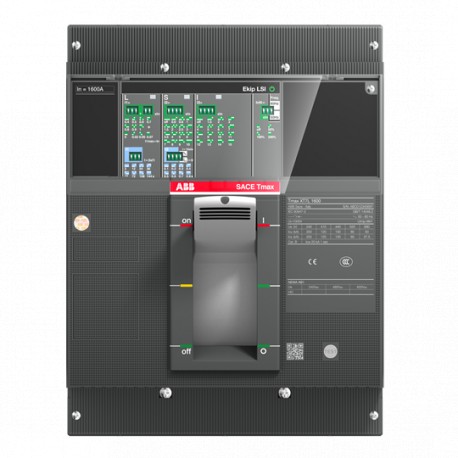

1SDA100955R1 ABB XT7L 1000 Ekip Dip LS/I In 1000A 3p F F
1SDA100955R1
100955
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for demanding electrical applications, the ABB XT7L 1000 Ekip Dip LS/I In 1000A 3p F F operates as a robust molded case circuit breaker that protects industrial circuits from overcurrent and fault conditions. Such components are routinely installed within primary distribution panels to maintain system reliability.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2357
- Environmental Product Declaration - EPD: 9AKK108468A1895
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 64.1 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 1b7a7cad-0054-4f6a-b0a9-36ddae11e4bf Italy
- Simplified SCIP: 5e5880c7-4a72-46ba-80ee-5b3c92c29f63 Belgium
- Ambient Air Temperature: Operation -40 ... 125 °C
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT7LE310DEFF000XXX
- E-Number (Norway): 4380680
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2357 |
| Environmental Product Declaration - EPD | 9AKK108468A1895 |
| 9AKK108468A4404 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 64.1 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 1b7a7cad-0054-4f6a-b0a9-36ddae11e4bf Italy |
| Simplified SCIP | 5e5880c7-4a72-46ba-80ee-5b3c92c29f63 Belgium |
| 7c9f71c8-ca38-4151-9839-25cb50ea6de4 Spain | |
| 13ebc947-5b86-41f2-918d-8f811ed95a9e Hungary | |
| 43f321ed-8a21-4106-8749-357a0ced5a48 France | |
| 69332fca-5319-4659-9fc5-55b66eebdf68 Germany | |
| a7ea366b-5f83-4ef8-87d6-94efba02b63b Estonia | |
| 5c73e76a-5ee3-4ee2-9a10-6889cc28837a Czech Republic | |
| 8f823569-d359-41b4-a655-6463880fe3ce Germany | |
| 1d3d249b-c326-47b0-8827-e9b6b58a8cea Croatia | |
| fba35753-54f0-4864-81dc-92277c4fa614 Germany | |
| 32247886-4a0a-4b0b-9f87-534bb2375610 Poland | |
| cdc829c7-2776-4b07-9ff1-b1c77edeec6a Finland | |
| c50ec9e5-3b28-44a3-bb99-e14e3bb4e2f2 Belgium | |
| 80fa74df-3788-44bb-8b89-77382875ac00 France | |
| 8b25cb13-ebc5-4aab-8f2d-dd91ef1e73dd Greece | |
| d3d3622d-2719-4864-8f58-b98b01d363f1 Denmark | |
| 9cc67c02-edb7-46ea-bc95-e61c0375368e Portugal | |
| 0be5cf74-4dd5-4f19-8cf4-10b50cbfa560 Sweden | |
| 7d77c05f-6516-4e11-a3f7-d0feddeead90 Germany | |
| a4c1d0c5-06db-4951-897c-71127eb2950c Germany | |
| f0da4ece-9f30-4081-9780-a2787eab0aa5 Bulgaria | |
| 9dc5189b-a0de-427b-beda-945f2bf09466 Poland | |
| 6a93f2a4-18ad-441e-994a-8242d6b8ec6a Poland | |
| d1a176a6-636f-4942-bb67-8af92ccf6083 Sweden | |
| 95a09d28-349e-44a8-96fc-45333ab523d4 Norway | |
| 90865f7a-3025-47fb-a69a-1e7a526ff2e1 Netherlands | |
| 2bba1a0f-9ddb-4ac1-a55c-717ef6c3d244 Hungary | |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT7LE310DEFF000XXX |
| E-Number (Norway) | 4380680 |
| EAN | 8056221010092 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 166 mm |
| Product Net Weight | 9.776 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 280 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 10.29 kg |
| Package Level 1 EAN | 8056221010092 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1336 |
| 1SDH002065A1338 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 3000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 10000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 37 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 65 kA | |
| (690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC60947-2 |
| Sub-type | XT7 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107046A9648 |
| Mechanical Drawings | 1SDH002013A1101 |
| Wiring Diagram | 1SDM000002A1001 |
| Instructions and Manuals | 1SDH002013A1001 |
| 1SDH002013A1002 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
