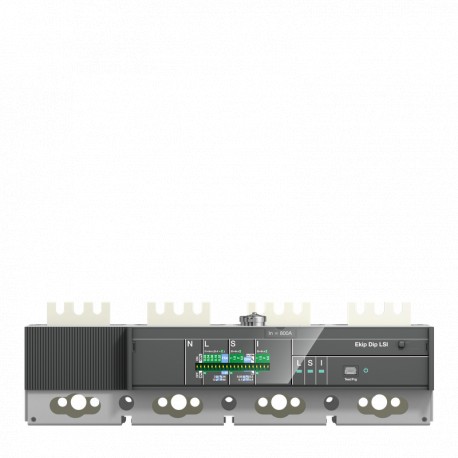

1SDA100816R1 ABB Ekip Dip LS/I In 800 XT6 4p
1SDA100816R1
100816
ABB
1 Pcs.
Automation > Shunt release (for power circuit breaker)
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Supplied by Abb, the Ekip Dip LS/I In 800 XT6 4p electronic trip unit functions as an internal protection module for high-capacity circuit breakers. These units process current measurements to safely interrupt electrical flow during system faults and overloads.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- E-Number (Finland): 3641898
- E-Number (Norway): 4380608
- EAN: 8056221008709
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1.6 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 120 mm
- Package Level 1 Height: 160 mm
- Package Level 1 Depth / Length: 190 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3641898 |
| E-Number (Norway) | 4380608 |
| EAN | 8056221008709 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.6 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Height | 160 mm |
| Package Level 1 Depth / Length | 190 mm |
| Package Level 1 Gross Weight | 1.7 kg |
| Package Level 1 EAN | 8056221008709 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT6 |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Rated Current (In) | 800 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Standards | IEC60947-2 |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH002011A1518 |
| External Classifications and Standards | |
| ETIM 9 | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 10 | EC001023 - Shunt release (for power circuit breaker) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370418 |
