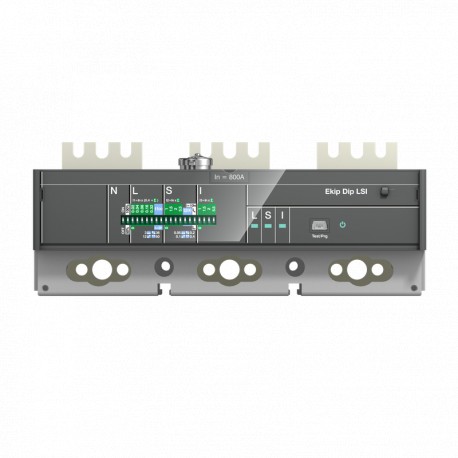

1SDA100802R1 ABB Ekip Dip LS/I In 1000 XT6 3p
1SDA100802R1
100802
ABB
1 Pcs.
Ekip Dip LS/I In=1000 XT6 3p
Automation > Shunt release (for power circuit breaker)
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed as an Ekip Dip LS/I In 1000 XT6 3p trip unit from Abb, this part serves as a dedicated overcurrent protection accessory for heavy-duty circuit breakers. Such units are standard in industrial electrical panels to provide reliable tripping behavior and protect downstream electrical equipment from thermal and magnetic stress. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 76840553-c47b-491e-b3fa-96ef36d5c03d Italy
- Simplified SCIP: 993b4705-ced3-4e14-8e6b-076f75bdcf00 Netherlands
- Environmental Information: 9AKK108467A6707
- E-Number (Norway): 4380566
- EAN: 8056221008563
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1.3 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 120 mm
- Package Level 1 Height: 160 mm
More info
