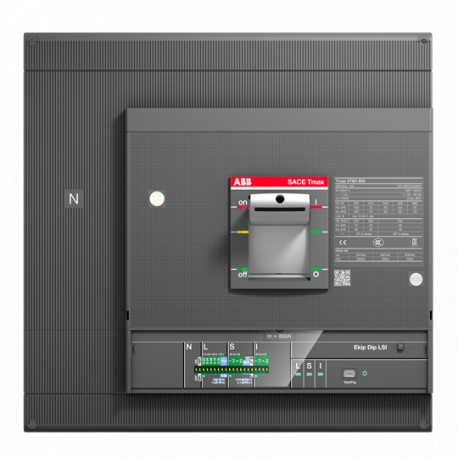

1SDA100776R1 ABB XT6H 800 Ekip Dip LS/I In 800 4p F F
1SDA100776R1
100776
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA100776R1 is an industrial circuit breaker engineered to protect heavy-load electrical grids and facility distribution lines from electrical faults. These devices provide essential overcurrent protection and manual switching capabilities inside manufacturing and utility switchboards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2356
- Environmental Product Declaration - EPD: 9AKK108468A9752
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 60 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 466e46b7-8a50-47ac-a9fb-834c296e2a7d Italy
- Simplified SCIP: 97e5cf46-357e-4c40-8530-b2a425665957 Greece
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT6HE4800EFF000XXX
- E-Number (Norway): 4380589
- EAN: 8056221008303
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2356 |
| Environmental Product Declaration - EPD | 9AKK108468A9752 |
| 9AKK108468A2295 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 60 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 466e46b7-8a50-47ac-a9fb-834c296e2a7d Italy |
| Simplified SCIP | 97e5cf46-357e-4c40-8530-b2a425665957 Greece |
| 6e42f13f-e73f-43dd-8fc3-0f71b72912b2 Portugal | |
| 87904fea-0aeb-4b69-8051-63be9ec4d8f2 Bulgaria | |
| 3311767e-9f28-42d5-bebc-e8fbaccb4bda Sweden | |
| f60930b0-0e7f-40e8-87d1-7b1c7c9574d8 Poland | |
| 7cf5ce48-a0bf-452a-8175-5ee19cff46fb Germany | |
| b6fa6e18-71c7-4699-9976-3235ee90010f France | |
| 3c642705-0bd0-45fd-a76c-a34a17bf3b28 Sweden | |
| c5146db8-2eec-4d10-8c3f-a77652a520a8 Hungary | |
| ca6aee36-f352-4e2f-a3f2-277dfa0b5766 France | |
| 0b02ea03-c4a3-4e4d-a11b-b90ea9adcd27 Hungary | |
| 91355cba-c1a3-4160-83c5-2c21490eb7fb Germany | |
| d6d5e8cd-f812-4b74-8749-00d894a76ba8 Croatia | |
| e346037c-4183-44ce-8a69-7ef023834c82 Denmark | |
| dea12b3a-cf42-4482-b41b-84c16d97d0fb Czech Republic | |
| a9126846-2978-4795-aa49-bf075424d43c Poland | |
| c8be8a47-b754-46b4-9324-89edd5b3de5f Belgium | |
| d2b10f40-cb27-4171-b88d-2ed965d76c06 Spain | |
| 5e79b1d1-e64e-4cbf-b2ea-8ca20b755e88 Netherlands | |
| ae934029-bd19-461d-a42a-38718dfcda33 Germany | |
| b54ea345-cca9-435e-88fc-391c4349c44c Norway | |
| 5e7a38a9-33f0-4044-95af-46eada7a5d79 Estonia | |
| 4ccbd770-ec0c-4311-9bc9-3879bef84671 Belgium | |
| 9bc37472-7d60-4374-b22c-8cba722c1eac Finland | |
| 32c70a9d-cd39-472e-955f-5c63eded43d2 Poland | |
| b138e6d0-1789-4203-b470-56186934c13e Germany | |
| 0a35e331-2459-49d0-b9c5-9c58c8417983 Germany | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT6HE4800EFF000XXX |
| E-Number (Norway) | 4380589 |
| EAN | 8056221008303 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 12 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8056221008303 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1214 |
| 1SDH002065A1245 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | 53.4 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 70 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| (750 V DC) 3 Poles in Series 36 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT6 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2825 |
| Mechanical Drawings | 1SDH002012A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002012A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
