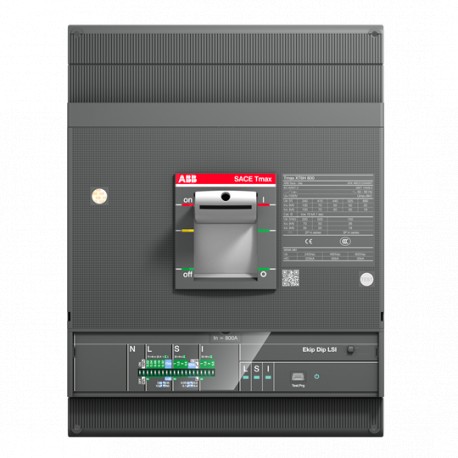

1SDA100771R1 ABB XT6H 800 Ekip M Dip LIU In 800A 3p F F
1SDA100771R1
100771
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A molded case circuit breaker, specifically the 1SDA100771R1 ABB XT6H 800 Ekip M Dip LIU In 800A 3p F F produced by Abb, functions to interrupt fault currents and protect electrical circuits from thermal overloads and short circuits. Facilities rely on such devices to maintain operational safety and prevent equipment failure.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2356
- Environmental Product Declaration - EPD: 9AKK108468A9752
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 60 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 115787ba-c7e0-40e6-866b-0fee8ba93c13 China
- Simplified SCIP: ec42678d-ac37-4fdf-b199-a5564eb3e674 Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT6HE3800LFF000XXX
- E-Number (Norway): 4380541
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2356 |
| Environmental Product Declaration - EPD | 9AKK108468A9752 |
| 9AKK108468A2295 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 60 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 115787ba-c7e0-40e6-866b-0fee8ba93c13 China |
| Simplified SCIP | ec42678d-ac37-4fdf-b199-a5564eb3e674 Germany |
| 2202368b-083b-4564-936a-be12a81865a5 Croatia | |
| a551514b-6349-4c39-8f06-b50280c94244 Belgium | |
| 47f61fb6-c432-43b3-bfc8-a123919a8c45 Bulgaria | |
| a4a12204-b69e-4c31-a7f7-e13b2e3f946e Sweden | |
| 7596551a-bf5f-489f-b1ea-d6aa91ff974e Portugal | |
| 84894c41-b073-4b5c-8215-c0130a43e5a1 Poland | |
| afc2b702-2cd9-4cb7-81bd-bbf48aba2835 Czech Republic | |
| 3b240e6c-3880-4726-8ba9-be0f195f7031 Poland | |
| b98a4f8d-c259-42dc-b648-e1e95905c8f0 Finland | |
| 238e5c7f-d38c-48a9-a956-0198287a24d0 Germany | |
| 4b388ce2-0207-42ca-a544-08d118641100 Poland | |
| b76550a6-ac88-46e8-b2c3-945e975a13d6 Germany | |
| 8c38d763-b43d-4430-ade3-022fbfd841c6 Norway | |
| 30e77a52-c4bb-4b0c-82ad-ddb960ee9ff3 Germany | |
| 12984c84-3b5f-4e55-8a2a-e2f4d506f9a4 Estonia | |
| 3878ae8e-0009-4a55-9471-eb24f2c268cc Belgium | |
| 5127cdf9-3acc-42ed-abee-5bd9ce16feef Greece | |
| 352f864a-7636-4ad6-a76d-c8b4ba394449 Hungary | |
| 378402e0-2460-4502-884f-3c56e0e862fd France | |
| 486501e1-af01-4d00-8af6-fd54f92e2109 Germany | |
| 1b6444a4-f477-439a-9b77-076fc8c8dc4d Netherlands | |
| 1bcbd224-fc7f-4f58-82bb-0b3e78306ca5 Sweden | |
| 34152951-36be-4aa6-8e14-25d5d74469ff France | |
| 1c5f8ed4-f9b8-49f7-b387-5088fb449a85 Hungary | |
| 3fb3b621-dec6-40e5-a097-37d4f56ddaaf Spain | |
| 83bc8e41-c8a4-4946-b4da-c833bf1005d5 Denmark | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT6HE3800LFF000XXX |
| E-Number (Norway) | 4380541 |
| EAN | 8056221008259 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 9.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 11 kg |
| Package Level 1 EAN | 8056221008259 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Motor Protection |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1190 |
| 1SDH002065A1245 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 53.4 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 70 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| (750 V DC) 3 Poles in Series 36 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip M Dip LIU |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT6 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2825 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Mechanical Drawings | 1SDH002012A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002012A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
