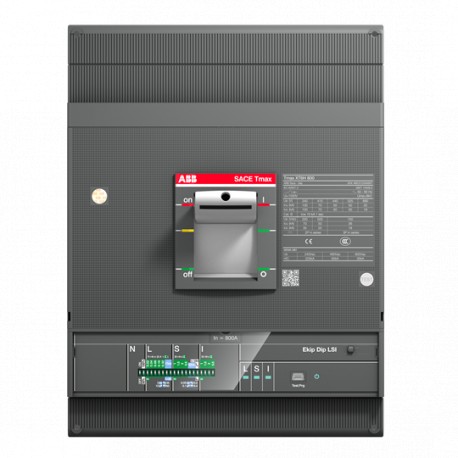

1SDA100767R1 ABB XT6H 800 Ekip Dip LSIG In 800 3p F F
1SDA100767R1
100767
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB circuit breaker, specifically identified by part number 1SDA100767R1, functions as an automatic safety switch to interrupt electrical circuits during fault conditions like overloads or short circuits. Industrial installations utilize such protective switching devices to safeguard downstream equipment and ensure safe plant operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2356
- Environmental Product Declaration - EPD: 9AKK108468A9752
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 60 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: b9e69ee3-24bb-46e0-b65b-76808b0650d2 China
- Simplified SCIP: d722d1c4-c0d5-4d44-8ed1-ae335f7345ed Belgium
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT6HE3800GFF000XXX
- EAN: 8056221008211
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2356 |
| Environmental Product Declaration - EPD | 9AKK108468A9752 |
| 9AKK108468A2295 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 60 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | b9e69ee3-24bb-46e0-b65b-76808b0650d2 China |
| Simplified SCIP | d722d1c4-c0d5-4d44-8ed1-ae335f7345ed Belgium |
| 187a22dd-a8f7-465c-999c-770f2501f71d Germany | |
| 0bf7ca69-22a3-4b44-a9c8-8e72ac89889e Germany | |
| a278e0b9-762c-450a-b55b-6b6fa3a70ac4 France | |
| 1793d636-e3f1-48ed-ae5c-9fe688397f2e Belgium | |
| aa0e8dd9-3bfc-49f5-a2f1-d0acbc355faf Sweden | |
| 3aa66a42-8601-4021-9d15-f3f3f524cc58 France | |
| 2289c0d3-e061-4d63-b177-c7113a2d49e6 Poland | |
| 4df9a75c-0563-4fd6-89a5-bdfa5ace21c9 Portugal | |
| 7d50e987-fedd-4196-abea-c76d80e1073a Sweden | |
| f199c6a7-8cc4-404e-8853-b61f9db86f31 Germany | |
| 654a9f07-9d1f-402d-9141-aeabc32fa742 Hungary | |
| 62573a42-0848-406c-b544-3784af1a1c06 Poland | |
| 328d13a1-2b2c-4d7b-9f87-de2971f64047 Estonia | |
| fae2de79-8485-4a44-8b28-fe2522c476e0 Bulgaria | |
| b8068355-6d8e-401a-a712-7e31c1460ed1 Germany | |
| ca2bf74a-2fbf-4a9f-9f17-9f06709d852a Spain | |
| 42207197-5b65-4d51-879f-cdce93a87ada Denmark | |
| 95285029-c44d-45e3-a504-f8ec1d3bc9b9 Norway | |
| cbf5e81c-2062-4d63-97ab-cb50075cba47 Croatia | |
| 6fb84a55-a325-4663-81bb-0879e802e0b8 Greece | |
| d77babdc-2120-41b8-967b-003bb4701204 Hungary | |
| dd2b021e-bcf8-4c7d-8c73-656a7bffbe23 Poland | |
| d1e3c177-c075-4bac-aca4-cc82b96fa98d Netherlands | |
| ecb00f0d-57be-4a13-8de5-9ee1c6886ce6 Czech Republic | |
| 06e9dc93-02a9-4231-aebe-0d4fd9fb976a Finland | |
| 9766efe0-1694-47bb-820d-4c4b649095c2 Germany | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT6HE3800GFF000XXX |
| EAN | 8056221008211 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 9.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 11 kg |
| Package Level 1 EAN | 8056221008211 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1190 |
| 1SDH002065A1245 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 53.4 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 70 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| (750 V DC) 3 Poles in Series 36 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT6 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2825 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Mechanical Drawings | 1SDH002012A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002012A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
