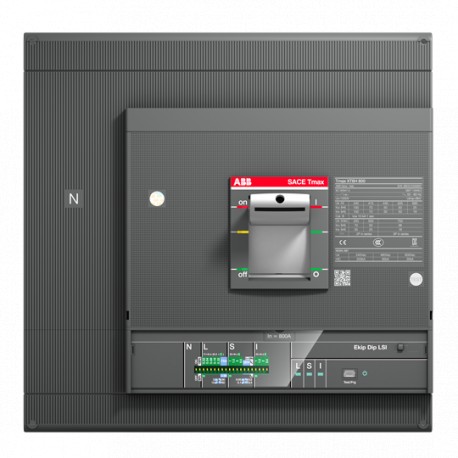

ABB 1SDA100755R1 1SDA100755R1 ABB XT6S 1000 Ekip Dip LS/I In 1000 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA100755R1 ABB XT6S 1000 Ekip Dip LS/I In 1000 4p F F

1SDA100755R1

100755

ABB

1 Pcs.

XT6S 1000 Ekip Dip LS/I In=1000 4p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2356
Environmental Product Declaration - EPD9AKK108468A9752
9AKK108468A2295
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 60 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP38436293-e363-48b4-ae6f-1abaab78476d Italy
Simplified SCIP47bd3391-00a1-46d9-9231-05b183592e85 Belgium
66da03b7-90a3-4b56-8f13-184d84097ba3 Netherlands
279e39c6-4b46-4146-aaf3-28c1a45b3227 Hungary
44ccd390-9b6f-4cc5-9e0a-ec602e99b090 Croatia
cccd2b02-ca3f-4d6f-9fa3-591da824a3e4 Czech Republic
46f2e050-161e-4c84-9dad-95c0608de14d Poland
491623a0-a079-4ca1-b165-1ab9e7a39acd Poland
8583becd-2a98-41ed-9fb1-301ed83050d8 Finland
1ab3962d-ba51-4925-9651-9ec31ebef12f Belgium
28a75dbd-fe9c-4b23-8793-a2f08b2763bc Germany
f0919e3e-b2cd-43df-8247-97c7c104ed18 Denmark
65c92e81-d87f-45fb-b1ce-03111c772e8a Germany
4daf589b-6a36-47f6-90a8-d0fc558dd5b9 Germany
20a9b346-61f1-4409-a9c5-5ba049f34633 Norway
06b49d45-1a97-409e-8d84-ac928e6b7dc9 Estonia
4642eaff-464f-4f09-9044-478067ec4a5c Greece
56fe891c-c4fd-440c-a89c-e818ff8e895a Portugal
1a705a7a-f571-4a2e-810b-99ed6cdea24e Bulgaria
b7e2868f-de5f-405f-bcfc-be1aafc6d6be Sweden
71dcec2f-bf2b-4fb6-b1cc-ece113519597 Poland
b7f2b6c0-8088-469c-8eb7-468d8a228958 France
f65a586f-52fa-4542-8eb2-d85f2ad5d24f Sweden
ed16a08b-b7af-487f-8f4b-4d1aa0a41c91 Germany
5850d7f0-9057-4523-978f-c5fd61140939 France
cae5c814-ea2d-48f3-8d92-df956ce8b8db Hungary
abf4dbc5-19ce-4fc9-b606-5c19ad090fdb Germany
9220f8eb-8955-4677-ba85-e319ff0062e4 Spain
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT6SE41K0EFF000XXX
E-Number (Norway)4380584
EAN8056221008099
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width280 mm
Product Net Height268 mm
Product Net Depth / Length103.5 mm
Product Net Weight12 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width305 mm
Package Level 1 Height285 mm
Package Level 1 Depth / Length370 mm
Package Level 1 Gross Weight14 kg
Package Level 1 EAN8056221008099
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1214
1SDH002065A1245
Technical
Current TypeAC
Electrical Durability5000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles4P
Order Multiple1 piece
Power Loss83.5 W
Rated Current (In)1000 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 45 kA
(500 V AC) 35 kA
(525 V AC) 35 kA
(690 V AC) 22 kA
Rated Short-time Withstand Current Low Voltage (Icw)10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 45 kA
(500 V AC) 35 kA
(525 V AC) 35 kA
(690 V AC) 22 kA
(250 V DC) 2 Poles in Series 50 kA
(500 V DC) 2 Poles in Series 35 kA
(750 V DC) 3 Poles in Series 24 kA
Rated Uninterrupted Current (Iu)1000 A
ReleaseEkip Dip LS/I
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT6
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107680A2825
EU Data Act Compliance Declaration1SDH002560A1001
Mechanical Drawings1SDH002012A1101
Wiring Diagram1SDM000005A1001
Instructions and Manuals1SDH002012A1001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA100755R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 1000 A
Rated voltage (EF003977) 690 V
Overload release current setting (EF002336) 1000 A
Adjustment range short-term delayed short-circuit release (EF007129) 1000 A
Adjustment range undelayed short-circuit release (EF007131) 1000 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 4
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20
