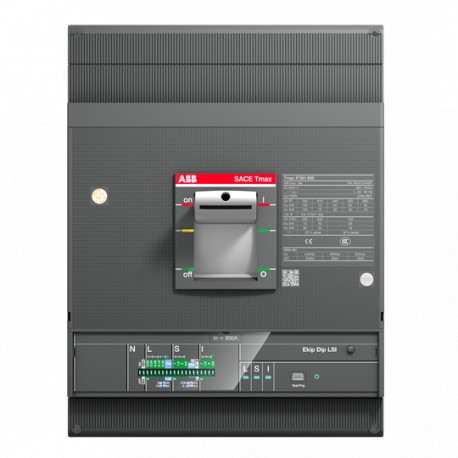

1SDA100719R1 ABB XT6N 800 Ekip Dip LS/I In 800 3p F F
1SDA100719R1
100719
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb 1SDA100719R1 XT6N 800 Ekip Dip LS/I In 800 3p F F is an industrial molded case circuit breaker engineered to protect heavy electrical circuits from overcurrents and short-circuit conditions. Power distribution engineers install these high-performance breakers in commercial switchgear and industrial panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2356
- Environmental Product Declaration - EPD: 9AKK108468A9752
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 60 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: c12787e3-c735-4096-bf0c-ea8704af4cf4 Italy
- Simplified SCIP: 891ce9e0-e3e6-4e9f-9b82-9ae4e485bdbe Hungary
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT6NE3800EFF000XXX
- E-Number (Finland): 3641699
- E-Number (Norway): 4380513
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2356 |
| Environmental Product Declaration - EPD | 9AKK108468A9752 |
| 9AKK108468A2295 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 60 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | c12787e3-c735-4096-bf0c-ea8704af4cf4 Italy |
| Simplified SCIP | 891ce9e0-e3e6-4e9f-9b82-9ae4e485bdbe Hungary |
| c32990c4-07d0-4d5a-8c95-41b99d743fcf Germany | |
| ba7c1a04-99df-419c-ab09-d07ebb0e7c18 Poland | |
| d8bc27fd-105b-4e28-a13a-3da3c11940f0 Germany | |
| cc78d887-fecf-4c47-90d0-1f551a4296e9 Germany | |
| 586b425c-9889-4e5a-b3cf-aea78c33f453 Denmark | |
| 130e25db-8081-471c-8098-8fe94a93c0ac Croatia | |
| 0efa9bea-69f1-45bb-801f-4cc29257d4c2 Czech Republic | |
| 29d19540-ea99-43a4-bce5-019d59ebd432 Belgium | |
| cedcd7b4-c0e1-4c4b-909b-52b2164122e2 Germany | |
| 6839da06-9a74-4b00-92ad-aa0374198d55 Poland | |
| 7cefc88a-f316-492d-9043-58257025b803 Finland | |
| 190d4d5d-a6e8-4b02-9d56-5befca5f411e Germany | |
| 8dc89b47-d747-44e6-a148-a89b23b60acf Norway | |
| ca27e5b7-e01e-4dfd-a6a5-4c4669dfdd2c Sweden | |
| e2e75aae-acbe-4cd2-81d7-6b382d911f78 Poland | |
| bcd2ac60-89d8-409a-9384-c7890e4726a9 France | |
| d33282a6-59fb-4235-956c-bdc42f7d3d08 Estonia | |
| e8615dad-cea1-42dc-8451-9748fb044328 Greece | |
| 844c4ea5-66a6-43b4-9f34-61c1b16f0e7c Portugal | |
| 802d5243-0e49-4bd9-a2dc-e17f16340981 Sweden | |
| e2e78894-05d2-4822-b246-a4fcfec17c69 Bulgaria | |
| a5d18e52-b4d0-4a5b-b3b0-b0622304a599 Hungary | |
| 67c486ce-4178-4b98-b53c-0e69259269aa Netherlands | |
| c2ba5c7c-35dd-4c06-9bff-ec733c9ff353 Belgium | |
| 0f0394a1-a928-45a0-9513-0405d3d7073a Spain | |
| 46f9f3aa-5074-4881-aaaa-e3436cea022c France | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT6NE3800EFF000XXX |
| E-Number (Finland) | 3641699 |
| E-Number (Norway) | 4380513 |
| EAN | 8056221007955 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 9.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 11 kg |
| Package Level 1 EAN | 8056221007955 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1190 |
| 1SDH002065A1245 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 53.4 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 2 Poles in Series 20 kA | |
| (750 V DC) 3 Poles in Series 18 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT6 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2825 |
| Mechanical Drawings | 1SDH002012A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002012A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
