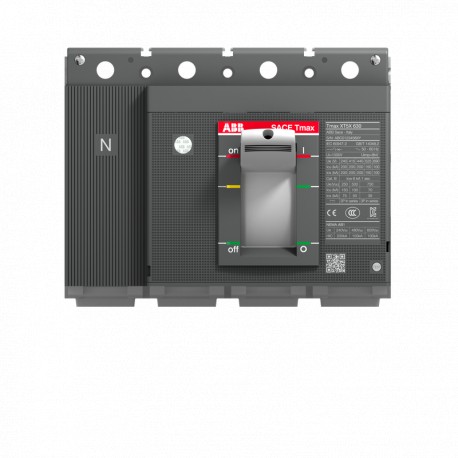

ABB 1SDA100560R1 1SDA100560R1 ABB XT5H 400 INTERRUPTIVE PART 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA100560R1 ABB XT5H 400 INTERRUPTIVE PART 4p F F

1SDA100560R1

100560

ABB

1 Pcs.

XT5H 400 INTERRUPTIVE PART 4p F F XT5H 400 BREAKING PART 4p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2353
Environmental Product Declaration - EPD9AKK108468A9746
9AKK108468A1893
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 59.6 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPe8e53c10-b50f-440a-a940-7f674654a70b Italy
Simplified SCIP4025a75e-4283-4615-bb37-a3aa0f03782b Germany
4685e09e-cb85-4ee7-a715-9ff4d3966771 Germany
2f85e0f3-6833-41b9-b613-cab4a4dc628c Poland
91950bcc-cecd-4cc0-a02a-826c385531bc Norway
cb60de8b-0219-46a6-a230-bceaf3fbce17 Finland
c74f824b-bea1-4ef1-95e3-ebe516cb9786 Netherlands
f83ff3e0-910a-4ebf-8555-ca4b82877581 Germany
cb13e80c-1c0f-4454-b4f4-cd7447c2969f Denmark
68c79195-d85f-4cc7-ac1a-13419beba34d Croatia
daca3c7a-9a5f-4e4d-b02e-77aa527dbd1d Czech Republic
de4404db-30ac-449d-98b0-c29a8e72cd42 Poland
6a9352e7-7790-41fe-909a-eeae210fa0d0 Netherlands
a13cd2bd-ec80-48c5-895d-001927c1b70a Netherlands
cdf7a8a8-9e59-4eda-bc55-24323d055ed6 Estonia
1dfaaee7-c2e9-4b2d-a32d-4ccb89010a2a Portugal
4ba25916-f56d-40a7-950a-e9458f46d84e Bulgaria
554c3c56-cdaa-4ff6-a2d1-2039ffe8e385 Sweden
7fffcbab-a87a-4413-9a23-48a0ba8ac8ac Poland
4f59608e-340a-4222-bf4e-72c83adfb03e France
a0b545e5-da83-47fd-97c3-f60b519366a4 Sweden
5ed8a4b1-bcdc-4d6e-9148-f3161f15b105 Greece
786ee23c-58cc-44c1-9c2f-3f0daa09417e Germany
86e2a4a2-1e48-4581-9292-47dd381342a1 Germany
07b758b7-29dd-4413-814a-6446c66c7fc5 France
b0581822-398d-42fa-ac0d-9a30ed63606e Netherlands
da7c7847-3aa4-4509-a38f-f8ff1c159f2b Spain
8f747875-58f7-4189-b5cf-34084741cbb2 Netherlands
Environmental
Environmental Information9AKK108467A6707
Ordering
E-Number (Finland)3641419
E-Number (Norway)4380452
EAN8056221006361
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Width186 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight4.15 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight4.5 kg
Package Level 1 EAN8056221006361
Additional Information
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeBreaking Part
VersionF
Technical
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles4P
Order Multiple1 piece
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 40 kA
(250 V DC) 2 Poles in Series 50 kA
(500 V DC) 2 Poles in Series 50 kA
Rated Short-time Withstand Current Low Voltage (Icw)5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 50 kA
(690 V AC) 40 kA
(250 V DC) 2 Poles in Series 50 kA
(500 V DC) 2 Poles in Series 50 kA
Rated Uninterrupted Current (Iu)400 A
Short-Circuit Performance LevelH
StandardsIEC60947-2
Sub-typeXT5
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107680A2824
Instructions and Manuals1SDH002011A1001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA100560R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated voltage (EF003977) 690 V
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 4
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20
