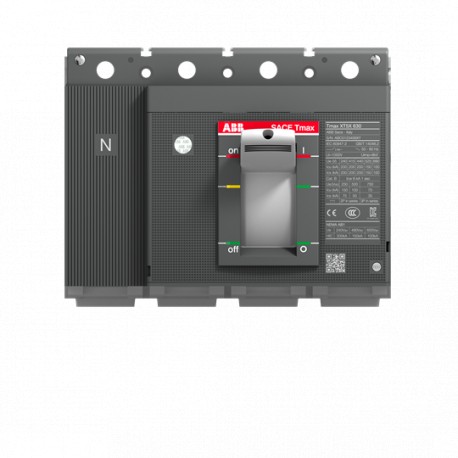

1SDA100552R1 ABB XT5N 400 INTERRUPTIVE PART 4p F F
1SDA100552R1
100552
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for primary power distribution, the 1SDA100552R1 ABB XT5N 400 INTERRUPTIVE PART 4p F F functions as a molded case circuit breaker component to isolate faults and protect downstream equipment. Circuit breakers of this class provide dependable thermal-magnetic interruption to maintain continuous operational safety.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2353
- Environmental Product Declaration - EPD: 9AKK108468A9746
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 59.6 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 9ce24c01-0946-4cf5-b5d7-1fbf6fa704b3 Italy
- Simplified SCIP: 3710709c-4d14-40dc-a4de-723aad6e1642 Germany
- Environmental Information: 9AKK108467A6707
- E-Number (Finland): 3641397
- E-Number (Norway): 4380448
- EAN: 8056221006286
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 9ce24c01-0946-4cf5-b5d7-1fbf6fa704b3 Italy |
| Simplified SCIP | 3710709c-4d14-40dc-a4de-723aad6e1642 Germany |
| 2ae3a7a5-30bf-41de-8355-282f00e1e44c Germany | |
| 74d48a79-ec16-4ddd-9f15-73d18c0cd4bc Germany | |
| a24b3588-bef4-4734-ad4a-f4a2fd7de199 France | |
| 8714cacd-459a-4c85-94af-b17c0ca41567 Netherlands | |
| c78f4d87-cf18-4f13-8a72-47b756dc8dd1 Spain | |
| f783c710-6a95-48b0-82db-5e7459dc77a5 Netherlands | |
| 10f26755-db57-4f97-8eaf-f87d739e12b2 Sweden | |
| 8c5004cf-a02b-4fc7-9229-e7cf91cf79dc Greece | |
| c7d03023-664e-49a6-94ca-70a43c80d9e0 Poland | |
| 358320ce-6b6c-45b7-a233-3d2d548feb11 Norway | |
| a507a1e7-1c56-4b27-81f4-83fc2caaafcf Finland | |
| 2becec6f-72bc-4d18-88e5-09395d129bb6 Netherlands | |
| 259a94e1-72d6-4e83-86a7-8509f4117874 Germany | |
| c304966c-a547-4087-9f8b-f7e72f522239 Denmark | |
| fb4a5a00-5165-484f-9606-f758a6d531b5 Germany | |
| 4b5f0241-fb17-4125-9fad-6083fd99eb96 Croatia | |
| 8bbbd34b-2ef4-46a2-aff1-c3dfe524a75a Czech Republic | |
| 0db8b501-fc49-4747-a120-d12e19ce2bdc Poland | |
| 6a523950-8803-4eeb-830a-f8346adf1698 Netherlands | |
| 3f316429-843e-4058-96de-6b0204662ab4 Netherlands | |
| 6113b70d-922d-49e5-8bc5-a8cbdcfcfe25 Estonia | |
| fc32d6c4-29ce-42b5-bef1-098b062f0990 Portugal | |
| aa6120a2-7e88-4679-b1ef-ac9e7e53dc7d Bulgaria | |
| a42c6b6b-31b8-40ae-9a1e-08354856e34c Sweden | |
| d77a8e96-b723-4914-a880-53c7adf32040 Poland | |
| ae434634-0068-4a9f-85d4-c557bec83b01 France | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3641397 |
| E-Number (Norway) | 4380448 |
| EAN | 8056221006286 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.15 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 4.5 kg |
| Package Level 1 EAN | 8056221006286 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
