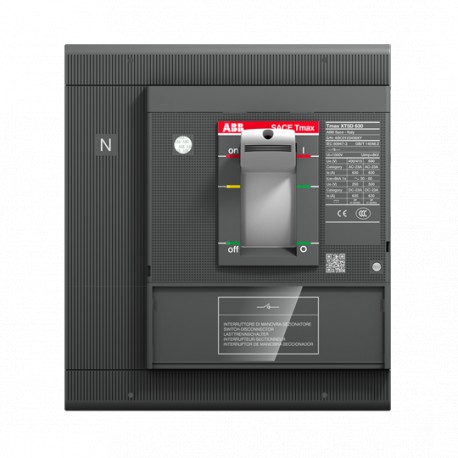

ABB 1SDA100548R1 1SDA100548R1 ABB XT5D 400 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA100548R1 ABB XT5D 400 4p F F

1SDA100548R1

100548

ABB

1 Pcs.

XT5D 400 4p F F

Connectors > Switch disconnector
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2353
Environmental Product Declaration - EPD9AKK108468A9746
9AKK108468A1893
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 59.6 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP3d18b1f4-4d08-4643-b3a9-f7162aec4b52 Italy
Simplified SCIP515fae19-d5a1-4c9d-bfd5-7150013e78dc France
f9fcc9e8-e30d-4774-ba61-0f244abb42a7 Greece
38d310c0-63d4-4423-9a8d-799701e9ca16 Germany
60ce7c87-9c46-4138-a2c3-1753a7ef888e Finland
b77336b9-c285-4ec0-8eae-329474e23b67 Hungary
63601c75-41ed-4206-80a2-7de275c81b81 Netherlands
0a555105-8471-4a70-af4c-8b07c080eba2 Sweden
71e0c04e-df95-48f8-801f-e507c7e0619a Germany
015b7f0b-579a-4f74-ad7a-f1dd6bee7108 Portugal
f38f9f6c-2841-48ff-a64b-ccfc16d80025 Germany
91ee2f17-828a-4814-94a3-bc834f0ad9bc Poland
015b7f0b-579a-4f74-ad7a-f1dd6bee7108 Portugal
f9fcc9e8-e30d-4774-ba61-0f244abb42a7 Greece
a9445c33-1800-49bd-ad8f-ddbfac187b18 Germany
84f1e865-66ae-4e00-a5ed-44780ad5ea77 Poland
f38f9f6c-2841-48ff-a64b-ccfc16d80025 Germany
71e0c04e-df95-48f8-801f-e507c7e0619a Germany
e136e2ce-35f6-456f-afb9-2c2388c709ab Spain
aae2e110-77ea-4db8-977b-3bc59204476d France
f19452ee-00f8-448d-b689-7cc7915a2713 Hungary
b77336b9-c285-4ec0-8eae-329474e23b67 Hungary
61217bed-bf27-4dce-91e9-e73db4756400 Estonia
aae2e110-77ea-4db8-977b-3bc59204476d France
91ee2f17-828a-4814-94a3-bc834f0ad9bc Poland
f19452ee-00f8-448d-b689-7cc7915a2713 Hungary
c4b6826b-b6bf-4324-9e05-0f2a9ece7770 Croatia
ec7e07d3-f738-4f6d-a734-bec5320ab392 Czech Republic
63601c75-41ed-4206-80a2-7de275c81b81 Netherlands
c17f2616-f7a6-4bcb-99bc-80d9a985600e Bulgaria
515fae19-d5a1-4c9d-bfd5-7150013e78dc France
01bac6da-cdc9-40cb-a0e7-8a534c2bbe67 Sweden
aa3e606e-eb21-4e5b-9b99-47c77fc221dd Poland
0a555105-8471-4a70-af4c-8b07c080eba2 Sweden
e136e2ce-35f6-456f-afb9-2c2388c709ab Spain
34ca218e-e643-435f-8571-3b099d355aba Belgium
61217bed-bf27-4dce-91e9-e73db4756400 Estonia
0746af35-681d-4bc2-b5ec-4609e3a0eaa2 Belgium
60ce7c87-9c46-4138-a2c3-1753a7ef888e Finland
38d310c0-63d4-4423-9a8d-799701e9ca16 Germany
f2d07ccb-a874-4b5f-ba1e-270431a75952 Germany
01bac6da-cdc9-40cb-a0e7-8a534c2bbe67 Sweden
a9445c33-1800-49bd-ad8f-ddbfac187b18 Germany
ec7e07d3-f738-4f6d-a734-bec5320ab392 Czech Republic
aa3e606e-eb21-4e5b-9b99-47c77fc221dd Poland
34ca218e-e643-435f-8571-3b099d355aba Belgium
1f9ccb0e-bbd8-4434-98fe-32035a458f6d Norway
0746af35-681d-4bc2-b5ec-4609e3a0eaa2 Belgium
f2d07ccb-a874-4b5f-ba1e-270431a75952 Germany
b9837d3d-eb64-4f6d-97db-ee272ad708b0 Denmark
c17f2616-f7a6-4bcb-99bc-80d9a985600e Bulgaria
b9837d3d-eb64-4f6d-97db-ee272ad708b0 Denmark
84f1e865-66ae-4e00-a5ed-44780ad5ea77 Poland
1f9ccb0e-bbd8-4434-98fe-32035a458f6d Norway
c4b6826b-b6bf-4324-9e05-0f2a9ece7770 Croatia
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT5DE440ADFF000XXX
E-Number (Norway)4380446
EAN8056221006248
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width186 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight5.6 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight6.088 kg
Package Level 1 EAN8056221006248
Additional Information
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeSwitch Disconnector
VersionF
CAD Dimensional Drawing1SDH002065A1183
1SDH002065A1131
Technical
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles4P
Order Multiple1 piece
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-23A (Ie)(400 V) 400 A
(690 V) 400 A
Rated Operational Voltage690 V AC
750 V DC
Rated Short-time Withstand Current Low Voltage (Icw)5 kA
Rated Uninterrupted Current (Iu)400 A
StandardsIEC60947-2
Sub-typeXT5
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107680A2824
Mechanical Drawings1SDH002011A1101
Wiring Diagram1SDM000005A1001
Instructions and Manuals1SDH002011A1001
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371403

ETIM for 1SDA100548R1 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 0 V
Rated short-time withstand current lcw (EF007050) 5 kA
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) Yes
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) Yes
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) White
Type of control element (EF006976) Toggle
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Bolt connection
Degree of protection (IP), front side (EF003118) IP20
Degree of protection (NEMA) (EF011959) 4

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
