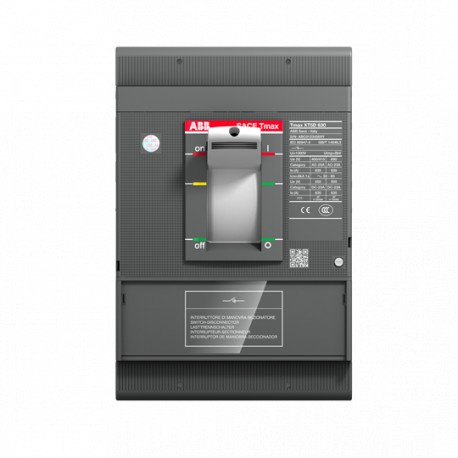

1SDA100546R1 ABB XT5D 400 3p F F
1SDA100546R1
100546
ABB
1 Pcs.
XT5D 400 3p F F
Connectors > Switch disconnector
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 045f2cf1-be91-4bcd-b731-887c182e83ea Italy |
| Simplified SCIP | 01556332-ded2-46e1-9b05-5bac73208121 Germany |
| eca2a49d-5ad5-4433-9d0b-ae19f16d4e1e Netherlands | |
| dffb741f-f5c2-479b-9106-31c31ef4ba06 Spain | |
| 6db88e9e-6479-44af-b0b8-e0992f955076 Netherlands | |
| 258fdcfb-4302-4ea1-a8a1-7f689f5848a9 Germany | |
| b76a69cc-0ba2-4ce6-a88f-d186d6966edb Poland | |
| 33c28849-7754-420d-b8c6-f0ccd6b8478a Norway | |
| 22dbb777-bf42-4d24-b54c-a33d1ef48256 Finland | |
| cc90bdc9-48d5-47fe-8df3-adfc2441d412 Netherlands | |
| bf889582-80b0-49a5-9d4a-da0ae1270d58 Germany | |
| 920585fb-c0f9-4371-9465-4fdf58eb943c Denmark | |
| 2da870f5-97d8-4cab-8f69-149222185209 Croatia | |
| bc285540-b9a2-4b97-b115-6f6facc2c63a Czech Republic | |
| 2bc3ddfb-c0b7-4ba1-832a-334db1e85f80 Poland | |
| ae596363-cc3a-4281-ab4b-bdd592d898ba Netherlands | |
| 105bada4-2430-485d-b15c-1103f09a8efc Netherlands | |
| 5b1492c2-10b7-4d22-a2ba-8fdff2fc7c60 Estonia | |
| 87d124d6-f585-4b1b-b84c-9bf107adccde Portugal | |
| 2faf0f7f-1867-4b9d-a79d-316ffcf75e19 Bulgaria | |
| 1b48d7d0-a21e-4f4a-90df-4ac8e1dd4efd Sweden | |
| 29174ac2-3ba6-4cb6-85b4-21b8b9223727 Poland | |
| f7397b96-d7c2-48ef-b3ad-8111935e8936 France | |
| fc258431-4cd3-4234-a135-b43d565660b3 Sweden | |
| 0a5b42b9-53bb-44c0-9816-693d5c0c3532 Greece | |
| 6fb9b86c-8590-43e0-916b-4810ed98fa78 Germany | |
| 0d8844a6-9003-453b-8076-a44f2f970364 Germany | |
| 8fb7fda3-253d-427e-9d0b-e7bf2da3f504 France | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5DE340ADFF000XXX |
| E-Number (Norway) | 4380321 |
| EAN | 8056221006224 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.775 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.263 kg |
| Package Level 1 EAN | 8056221006224 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-23A (Ie) | (400 V) 400 A |
| (690 V) 400 A | |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Uninterrupted Current (Iu) | 400 A |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 0 V |
| Rated short-time withstand current lcw (EF007050) | 5 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | White |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 4 |
