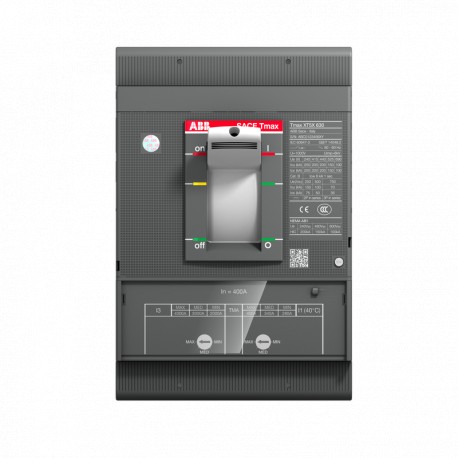

1SDA100487R1 ABB XT5H 630 TMA 630-6300 3p F F
1SDA100487R1
100487
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Serving as a 1SDA100487R1 ABB XT5H 630 TMA 630-6300 3p F F, this molded case circuit breaker safeguards electrical networks by automatically disconnecting faulty circuits. Industrial control systems deploy these components to maintain operational safety and equipment integrity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2353
- Environmental Product Declaration - EPD: 9AKK108468A9746
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 59.6 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 73007bd1-f292-4104-bf7a-29ef31f10fcf Italy
- Simplified SCIP: ffe195c0-b7b0-4f1f-8173-86cdc51b8459 Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT5HE363BBFF000XXX
- E-Number (Norway): 4380298
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 73007bd1-f292-4104-bf7a-29ef31f10fcf Italy |
| Simplified SCIP | ffe195c0-b7b0-4f1f-8173-86cdc51b8459 Germany |
| f757a61f-7707-4d86-9aee-940868698d67 Sweden | |
| 68e2f2ef-6f51-4ba8-8b92-0452737adbb8 Germany | |
| 88d1dfaf-aec3-406d-a8f2-38e025407e30 Netherlands | |
| acf9594f-8cf5-4ca4-86c4-568ded9721f4 Spain | |
| dc3db05b-564d-46bf-9c73-f4a808570945 Netherlands | |
| 18700b42-1311-4227-9710-bb039bcdbe75 France | |
| 3464ee8b-9a36-4c9b-91fd-2fe050393a3b Poland | |
| cddf5c36-2f74-4f59-b1c4-025756bc0e0f Norway | |
| ddf4bdaf-1330-43bc-9b69-dc11f6c0cc82 Poland | |
| 6d982fd8-bae7-47fb-825a-a7e801a70abb Netherlands | |
| c9bdb95b-51b2-4a31-865f-e5f48984c923 Netherlands | |
| ca4ccbc0-3488-4cd9-9283-047c54546f76 Estonia | |
| fe22b47c-1a8a-4217-9708-e19a3cfb289d Greece | |
| c02f30aa-7162-4ddb-969e-d6a503783a32 Portugal | |
| 4cc0de2d-1865-4cc3-b189-35e084f1419b Bulgaria | |
| 16e1dea9-8b40-4b11-bcf8-a3780e2c019b Sweden | |
| 93a3c5b3-26a4-4970-bdcd-7ed6eea8dd17 Poland | |
| 561b514f-0d04-4c10-b292-defc81f4e855 France | |
| d974d0f5-dc4b-418a-87db-d47e9cac0954 Netherlands | |
| e51067a8-e883-4014-99de-5c7c3b8d4520 Germany | |
| 8107b415-6f0c-42fa-b3b5-e4f011dc32a9 Denmark | |
| a4ce6571-1bfd-4d04-8dd5-84d3905dc25b Germany | |
| fa74afe9-1200-4362-800e-92a4255f5a9a Finland | |
| 3c4116e6-ac18-4721-82b9-3202c8e2c084 Germany | |
| 4e0940db-1a53-47bd-a6ee-93d17c5e5fae Croatia | |
| 6759e773-f245-4d4d-b625-c22a59c6e4d6 Czech Republic | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5HE363BBFF000XXX |
| E-Number (Norway) | 4380298 |
| EAN | 8056221005647 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.775 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.263 kg |
| Package Level 1 EAN | 8056221005647 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC/DC |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 47.8 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 3150…6300 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | TMA |
| Release Type | TM |
| Setting Range | 441…630 A |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
