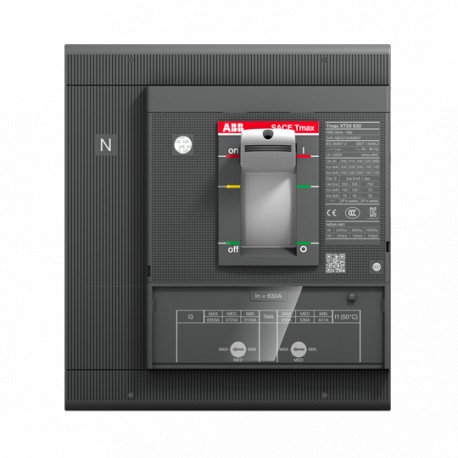

1SDA100459R1 ABB XT5S 630 TMA 630-6300 4p F F InN 100%In
1SDA100459R1
100459
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Industrial manufacturing plants and large commercial facilities utilize this Abb 1SDA100459R1 circuit-breaker to isolate electrical circuits and protect against dangerous overcurrents and short circuits. These vital components ensure facility safety by reliably interrupting fault currents before they damage connected machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2353
- Environmental Product Declaration - EPD: 9AKK108468A9746
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 59.6 %
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 9f692800-ff34-41ad-b018-9b5e9bbee37d Italy
- Simplified SCIP: 8b16c0d8-edc3-486b-b63f-ea9c19cbef00 Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT5SE463BBFF000XXX
- E-Number (Norway): 4380417
- EAN: 8056221005364
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 9f692800-ff34-41ad-b018-9b5e9bbee37d Italy |
| Simplified SCIP | 8b16c0d8-edc3-486b-b63f-ea9c19cbef00 Germany |
| 0b797500-81f6-46e6-9f8d-4f2a3f1b9343 Netherlands | |
| 19d20c32-1e41-4e7a-b77c-0dc917b2c53a Germany | |
| d6fa4527-b29a-4a60-b421-21038078dc45 Denmark | |
| a7abaef6-f9a0-48e0-8546-062363198812 Germany | |
| 5c600f27-f45f-4a5b-9b3a-e221b5785f07 Finland | |
| dafae491-29ab-4301-8135-69b8e2c29405 Germany | |
| 99edade1-e85c-4954-aedf-52c31cbca626 Czech Republic | |
| 25264f67-8c72-45fc-a38e-e86d51a33704 Poland | |
| 2db5b803-22e1-4663-8d25-f3ce57840a62 Netherlands | |
| 00666550-8f43-42b3-9b58-c03eb98f17d3 Poland | |
| dab7353d-e94e-46e3-b0a3-c584562d14c1 France | |
| 746c700b-52cb-480c-bae1-7c52f04b90db Sweden | |
| e873fd0d-cbd2-4b95-8df3-1d5a638d0caa Germany | |
| 42fb2010-d1d4-4f45-8014-47c8442246e0 Netherlands | |
| 455be909-f540-4dd4-bb59-d97b7bbe1819 Spain | |
| 880a73fb-bb8e-4058-b680-bf2ba511f485 Netherlands | |
| c18fb132-6535-4e23-b6ee-cca390a9ae07 France | |
| d03e7238-34a4-4bc9-a946-087469fd9365 Poland | |
| f1ff83e7-b0f5-42a2-8684-678ac9a54c8e Croatia | |
| 673c23e7-465e-40e1-9d80-555def8d8a49 Norway | |
| c018ecf4-5a73-4064-acfc-9bda4320e380 Netherlands | |
| 66e4195f-c0bd-4617-bc52-00b2438d770c Estonia | |
| ea9be13d-37b5-4dca-b3b3-9362202723cf Greece | |
| aa65f38e-dcd0-4ec2-b2c5-39c24514d428 Portugal | |
| 2844f108-4836-46e1-ac82-c5becc29e8dd Bulgaria | |
| 8c009d0e-887c-49e8-b484-154a7b238bfd Sweden | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5SE463BBFF000XXX |
| E-Number (Norway) | 4380417 |
| EAN | 8056221005364 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.6 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 6.088 kg |
| Package Level 1 EAN | 8056221005364 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1183 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC/DC |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | 47.8 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 3150…6300 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 7.5 kA | |
| (500 V DC) 2 Poles in Series 7.5 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 35 kA | |
| (500 V DC) 2 Poles in Series 35 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | TMA |
| Release Type | TM |
| Setting Range | 441…630 A |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
