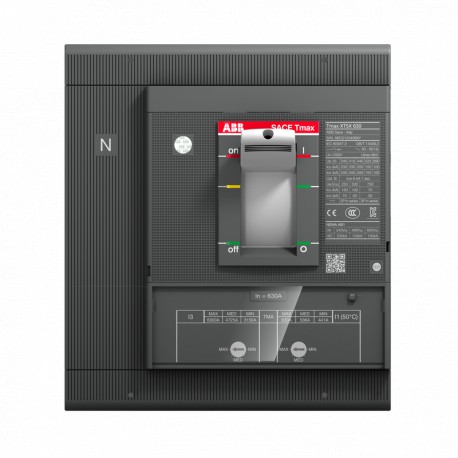

1SDA100455R1 ABB XT5S 400 TMA 400-4000 4p F F InN 100%In
1SDA100455R1
100455
ABB
1 Pcs.
XT5S 400 TMA 400-4000 4p F F InN=100%In
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A circuit breaker protects electrical distribution networks by interrupting excessive currents caused by overloads or short circuits. This Abb 1SDA100455R1 unit is built to handle robust demands in industrial power management systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2353
- Environmental Product Declaration - EPD: 9AKK108468A9746
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 59.6 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: c960e597-0757-4e44-8594-dd3e097c0dff Italy
- Simplified SCIP: 6773bac7-c707-4ea8-bd2c-88e5a4c5699f Belgium
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT5SE440ABFF000XXX
- E-Number (Norway): 4380415
More info
