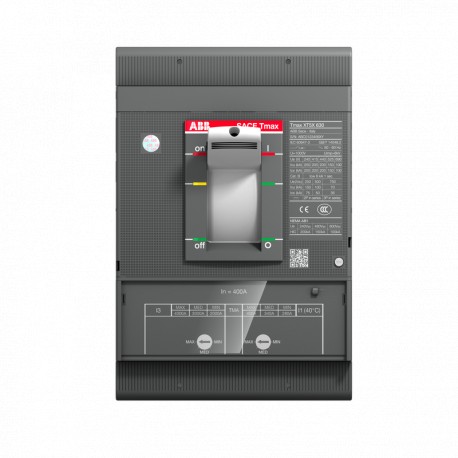

ABB 1SDA100435R1 1SDA100435R1 ABB XT5S 400 MA 400-4000 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA100435R1 ABB XT5S 400 MA 400-4000 3p F F

1SDA100435R1

100435

ABB

1 Pcs.

XT5S 400 MA 400-4000 3p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2353
Environmental Product Declaration - EPD9AKK108468A9746
9AKK108468A1893
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 59.6 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP8f4df7a8-c3c2-4cc6-bddc-7166d85a6b3b Italy
Simplified SCIP37aa610c-2df3-4e80-bbba-9da66709b739 Poland
fd4cbf9a-4258-44b6-bc49-a80ca024d5e5 Hungary
0eabc9ab-62e4-4069-96b1-37fc456914f3 Estonia
730c8ab4-15aa-495b-9747-175c42179626 France
c733858a-631b-4fa0-9c7d-b044cd93dd81 Czech Republic
084bf64b-b21e-40d1-8a2e-d5b19c5a9c88 Bulgaria
31471a20-6fdc-4d80-b264-d13cbab041ec Netherlands
20e5062e-a2e2-43e1-972d-a8976d959805 Hungary
66b8cdc3-b423-4bc8-a064-9c207b73ee1c Poland
5ec79032-71be-4b18-b075-971fcc5f499d France
bd1ef654-472c-45f6-b95f-053c8ec68bd9 Sweden
74d01ec4-fa66-45fe-943a-29e9271403dd Belgium
0eabc9ab-62e4-4069-96b1-37fc456914f3 Estonia
ddf53994-58a3-46e9-974a-88f2a098d45b Sweden
d2ba3b0b-640a-4a2d-9c63-cbfc6620363b Spain
82c03ad3-1353-4dc8-b753-9fe303b23f89 Germany
3c5fc2d8-cf50-47c3-9159-e1ecf6ffda67 Germany
fd4cbf9a-4258-44b6-bc49-a80ca024d5e5 Hungary
730c8ab4-15aa-495b-9747-175c42179626 France
d2ba3b0b-640a-4a2d-9c63-cbfc6620363b Spain
084bf64b-b21e-40d1-8a2e-d5b19c5a9c88 Bulgaria
8e2d0ebc-f7f8-48dc-b565-bd856c9b9705 Denmark
74d01ec4-fa66-45fe-943a-29e9271403dd Belgium
0ab067e6-f4a5-430a-9301-481bbf8ca149 Germany
4deeab24-3335-4dc6-bd49-a4ba31dacdc9 Belgium
687605be-cd6f-4bb6-addf-f1d46917dd25 Norway
66b8cdc3-b423-4bc8-a064-9c207b73ee1c Poland
c733858a-631b-4fa0-9c7d-b044cd93dd81 Czech Republic
27d2a2ec-4c6c-489e-b96e-8a66d89672ec Germany
ddf53994-58a3-46e9-974a-88f2a098d45b Sweden
0ab067e6-f4a5-430a-9301-481bbf8ca149 Germany
ea257c99-b263-485f-9677-6bffb19d47ce Finland
8c20862b-7371-434e-84d2-38f767248a41 Germany
4deeab24-3335-4dc6-bd49-a4ba31dacdc9 Belgium
5ec79032-71be-4b18-b075-971fcc5f499d France
6cd34aa2-133f-450e-b207-5a0b975fd760 Greece
ea257c99-b263-485f-9677-6bffb19d47ce Finland
8c20862b-7371-434e-84d2-38f767248a41 Germany
384ff4c8-2e3f-4c1d-a5af-6c909074121e Croatia
687605be-cd6f-4bb6-addf-f1d46917dd25 Norway
8e2d0ebc-f7f8-48dc-b565-bd856c9b9705 Denmark
3468556b-87dc-452c-a9da-fc7da26a3827 Poland
82c03ad3-1353-4dc8-b753-9fe303b23f89 Germany
94a6cdde-18ec-41f3-97c8-1c989c637f52 Portugal
384ff4c8-2e3f-4c1d-a5af-6c909074121e Croatia
20e5062e-a2e2-43e1-972d-a8976d959805 Hungary
3c5fc2d8-cf50-47c3-9159-e1ecf6ffda67 Germany
31471a20-6fdc-4d80-b264-d13cbab041ec Netherlands
bd1ef654-472c-45f6-b95f-053c8ec68bd9 Sweden
37aa610c-2df3-4e80-bbba-9da66709b739 Poland
27d2a2ec-4c6c-489e-b96e-8a66d89672ec Germany
3468556b-87dc-452c-a9da-fc7da26a3827 Poland
6cd34aa2-133f-450e-b207-5a0b975fd760 Greece
94a6cdde-18ec-41f3-97c8-1c989c637f52 Portugal
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT5SE340AMFF000XXX
E-Number (Norway)4380282
EAN8056221005128
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight4.775 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width250 mm
Package Level 1 Height245 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight5.263 kg
Package Level 1 EAN8056221005128
Additional Information
Circuit Breaker Type to be AssociatedMotor Protection
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1115
1SDH002065A1131
Technical
Current TypeAC/DC
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Order Multiple1 piece
Power Loss24.1 W
Rated Current (In)400 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)2800…5200 A
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 30 kA
(525 V AC) 30 kA
(690 V AC) 25 kA
(250 V DC) 2 Poles in Series 30 kA
(500 V DC) 2 Poles in Series 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 30 kA
(525 V AC) 30 kA
(690 V AC) 25 kA
(250 V DC) 2 Poles in Series 30 kA
(500 V DC) 2 Poles in Series 30 kA
Rated Uninterrupted Current (Iu)400 A
ReleaseMA
Release TypeM
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT5
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107680A2824
Mechanical Drawings1SDH002011A1101
Wiring Diagram1SDM000005A1001
Instructions and Manuals1SDH002011A1001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA100435R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 400 A
Rated voltage (EF003977) 690 V
Adjustment range undelayed short-circuit release (EF007131) 2800 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
