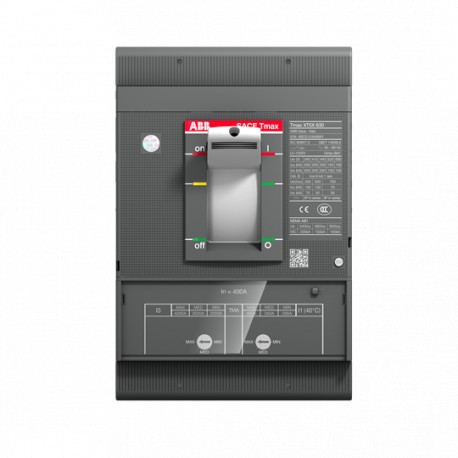

1SDA100417R1 ABB XT5S 630 TMA 630-6300 3p F F
1SDA100417R1
100417
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA100417R1 is a molded case circuit breaker engineered to interrupt high fault currents and protect power distribution infrastructure in industrial environments. Such protective devices are standard in electrical switchgear for isolating circuits safely during overcurrent events or maintenance routines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2353
- Environmental Product Declaration - EPD: 9AKK108468A9746
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 59.6 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 0a6c0582-267c-49aa-bfaa-b54f79038afc Italy
- Simplified SCIP: 315c4a90-a914-4278-bc67-4779b22d51ad Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT5SE363BBFF000XXX
- E-Number (Norway): 4380272
- EAN: 8056221004947
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 0a6c0582-267c-49aa-bfaa-b54f79038afc Italy |
| Simplified SCIP | 315c4a90-a914-4278-bc67-4779b22d51ad Germany |
| f9e324cb-910a-41e8-9408-4055335d0675 Netherlands | |
| 7d338b5a-b20b-4fa6-b800-5d10c5dcf474 Germany | |
| 6d84bc6f-8aa6-49f7-8645-eb3ea8c1d5d9 Denmark | |
| 4619c541-5096-463b-9f93-792f9c9d6c60 Germany | |
| 0b0f903d-b412-40d5-a086-46d62e223e2a Finland | |
| 5e576197-8f66-4e69-9ee4-2546e2f4384f Germany | |
| 9ad19310-4f5e-4b4f-8267-2daa1ebb453c Czech Republic | |
| 19704a55-23e7-4653-a6b4-66e632a98f62 Poland | |
| 8416ebec-a3e1-4f54-a51c-a97d902260f5 Netherlands | |
| db09d0c8-86c4-411b-99d7-cf9b2adb1467 Netherlands | |
| 7653a4be-6eaf-4632-8aeb-58488c001499 Estonia | |
| 2b7585c6-bcc9-47c0-ba65-a5d12a524b1e Greece | |
| bc5e21ed-b3b7-42e1-bd53-fd772462375d Portugal | |
| 47d64ec4-1fbf-44a8-b5af-b941824c0f60 Bulgaria | |
| e1d3d506-c15c-450b-b95b-89f22481c59b Sweden | |
| 8413a10c-a29e-46fc-9ca2-29981d49dbaf Poland | |
| dc6ad216-d53f-4e6b-90dc-92804be51ba1 France | |
| 4f087215-0d01-484f-8981-151ceddcd4fe Sweden | |
| f9aff294-c54a-46aa-9210-412bd06745f1 Germany | |
| 816b89bc-297e-4eca-a1c7-28474ff72e7f Netherlands | |
| a7374301-5e09-468a-9eab-1c54f0b2ea7a Spain | |
| abd24bb0-dac0-4cb1-87a2-311bd5850d07 Netherlands | |
| 832aae04-de90-4efb-91d6-2e1ae65f6c00 France | |
| 453e7a8d-d948-45cc-ae25-bd2ec3693805 Poland | |
| a60adcb8-577a-427d-a3f8-a48c8eabdd55 Croatia | |
| a0d04214-fc59-4632-9e2e-b2e05138bc32 Norway | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5SE363BBFF000XXX |
| E-Number (Norway) | 4380272 |
| EAN | 8056221004947 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.775 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.263 kg |
| Package Level 1 EAN | 8056221004947 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC/DC |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 47.8 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 3150…6300 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 7.5 kA | |
| (500 V DC) 2 Poles in Series 7.5 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 35 kA | |
| (500 V DC) 2 Poles in Series 35 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | TMA |
| Release Type | TM |
| Setting Range | 441…630 A |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
