> ABB > Molded case "Isomax-Tmax" > 100415

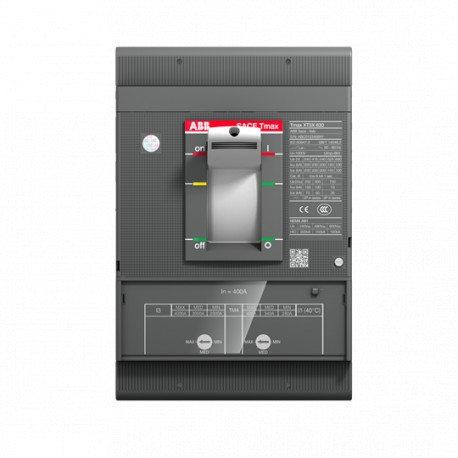

ABB 1SDA100415R1 1SDA100415R1 ABB XT5S 400 TMA 400-4000 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA100415R1 ABB XT5S 400 TMA 400-4000 3p F F

1SDA100415R1

100415

ABB

1 Pcs.

XT5S 400 TMA 400-4000 3p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2353
Environmental Product Declaration - EPD9AKK108468A9746
9AKK108468A1893
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 59.6 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPcc014527-db68-4617-8348-db896044b199 Italy
Simplified SCIPa951c8ee-9c8d-41ef-a2f2-c2c8b8e23ce7 Hungary
cfa57215-9ead-490d-b558-f213cb516d8c Poland
74a8242b-83d1-4f3b-8326-48b78da1ac62 Estonia
a7379c8f-89fb-4a8d-b48a-37c8e4cc3e07 France
1a665466-792f-435f-a4f5-c3bafb3624fc Bulgaria
e7be3152-9bb8-4480-8d08-d0192cea016e Netherlands
de4beb21-6a33-4ee2-8fb1-0483077514a6 Czech Republic
471c694a-27a3-434b-bab8-15cbd3d6106b Hungary
74a8242b-83d1-4f3b-8326-48b78da1ac62 Estonia
f4f424e2-15ba-4395-b436-b879b8cabd8f Belgium
ff62239b-c6dd-4d72-b9c3-34d381b9b442 Sweden
4b6414cb-df7e-4c60-8d48-dfafa3935989 Spain
3caded50-2443-4b3f-9248-35f9d609fc06 Sweden
ee561393-d82d-4a85-90df-0094dcde30de Poland
dbd38bd0-9d3c-4089-b402-ca38557da887 France
a7379c8f-89fb-4a8d-b48a-37c8e4cc3e07 France
a951c8ee-9c8d-41ef-a2f2-c2c8b8e23ce7 Hungary
4b6414cb-df7e-4c60-8d48-dfafa3935989 Spain
57316f24-dfc2-48bb-b89d-f9977379d26c Germany
c202fc1e-79b5-4e59-9a5c-197688f231bb Germany
d622d46f-d7b7-41c5-9236-e89fef49246e Denmark
1a665466-792f-435f-a4f5-c3bafb3624fc Bulgaria
fa444d03-3429-40be-9c6e-88982211ba76 Norway
fba0d894-c5b7-4d72-acf8-2cbfdbfd62a5 Belgium
1e0c3a27-3ece-4b37-863b-208eecc96c1b Germany
f4f424e2-15ba-4395-b436-b879b8cabd8f Belgium
523f3bfb-0963-4190-a139-e540fd030f8a Germany
3543b803-d4c7-4b2b-a3a9-ea5a8de63cfc Finland
fba0d894-c5b7-4d72-acf8-2cbfdbfd62a5 Belgium
de4beb21-6a33-4ee2-8fb1-0483077514a6 Czech Republic
ee561393-d82d-4a85-90df-0094dcde30de Poland
1e0c3a27-3ece-4b37-863b-208eecc96c1b Germany
ff62239b-c6dd-4d72-b9c3-34d381b9b442 Sweden
b73d2ba9-2880-4d7b-babd-5b8326437e74 Germany
3caded50-2443-4b3f-9248-35f9d609fc06 Sweden
e7be3152-9bb8-4480-8d08-d0192cea016e Netherlands
471c694a-27a3-434b-bab8-15cbd3d6106b Hungary
c202fc1e-79b5-4e59-9a5c-197688f231bb Germany
75aab4d8-fe90-4e73-865d-192765c66504 Croatia
57316f24-dfc2-48bb-b89d-f9977379d26c Germany
c6efae00-718c-4cae-b514-601f6276483f Portugal
f8249b51-20a9-4cca-a676-1958769f834a Poland
d622d46f-d7b7-41c5-9236-e89fef49246e Denmark
75aab4d8-fe90-4e73-865d-192765c66504 Croatia
fa444d03-3429-40be-9c6e-88982211ba76 Norway
dbd38bd0-9d3c-4089-b402-ca38557da887 France
80387626-99f2-45c1-895a-6a67f64062be Greece
3543b803-d4c7-4b2b-a3a9-ea5a8de63cfc Finland
523f3bfb-0963-4190-a139-e540fd030f8a Germany
c6efae00-718c-4cae-b514-601f6276483f Portugal
80387626-99f2-45c1-895a-6a67f64062be Greece
f8249b51-20a9-4cca-a676-1958769f834a Poland
b73d2ba9-2880-4d7b-babd-5b8326437e74 Germany
cfa57215-9ead-490d-b558-f213cb516d8c Poland
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT5SE340ABFF000XXX
E-Number (Norway)4380270
EAN8056221004923
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight4.775 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width250 mm
Package Level 1 Height245 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight5.263 kg
Package Level 1 EAN8056221004923
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1115
1SDH002065A1131
Technical
Current TypeAC/DC
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Order Multiple1 piece
Power Loss24.1 W
Rated Current (In)400 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)2000…4000 A
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 30 kA
(525 V AC) 30 kA
(690 V AC) 25 kA
(250 V DC) 2 Poles in Series 30 kA
(500 V DC) 2 Poles in Series 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 30 kA
(525 V AC) 30 kA
(690 V AC) 25 kA
(250 V DC) 2 Poles in Series 35 kA
(500 V DC) 2 Poles in Series 35 kA
Rated Uninterrupted Current (Iu)400 A
ReleaseTMA
Release TypeTM
Setting Range280…400 A
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT5
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107680A2824
Mechanical Drawings1SDH002011A1101
Wiring Diagram1SDM000005A1001
Instructions and Manuals1SDH002011A1001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA100415R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 400 A
Rated voltage (EF003977) 690 V
Overload release current setting (EF002336) 160.0 A
Adjustment range undelayed short-circuit release (EF007131) 2000 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20
