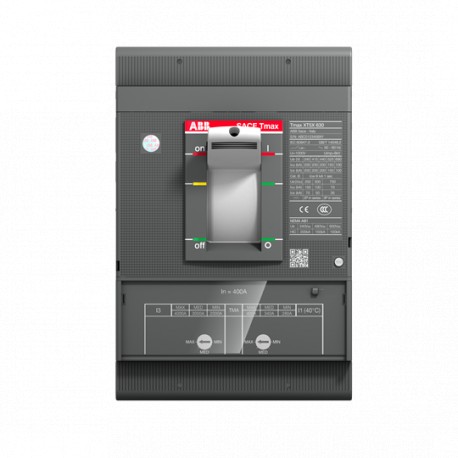

ABB 1SDA100414R1 1SDA100414R1 ABB XT5S 400 TMA 320-3200 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA100414R1 ABB XT5S 400 TMA 320-3200 3p F F

1SDA100414R1

100414

ABB

1 Pcs.

XT5S 400 TMA 320-3200 3p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2353
Environmental Product Declaration - EPD9AKK108468A9746
9AKK108468A1893
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 59.6 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP0b42750d-9eb1-489a-830a-97f0c8a7fd4f Italy
Simplified SCIP8e113c7e-dae1-4346-b347-39c9d014eacb Hungary
a423880c-7efa-4e86-bf00-bae2786b6019 Czech Republic
a1b79dc4-cb03-4939-831d-d63b4df0ed9a Netherlands
02b01ee3-0f2a-48c8-b744-3cba344d6df4 Bulgaria
f3e90ffc-863a-4889-85a0-3f2e596c5c96 Hungary
22c99369-8fb8-4827-9049-843e123e7b15 Poland
8bd53fb9-1357-4a10-8b8e-46d4847114e7 Estonia
ac1d526a-1447-42f2-b2df-0a70e1459d51 France
b7d4c928-8123-49eb-a169-8ce67cba10b8 Sweden
c8412c91-54f8-4f06-bdeb-070a424decdb Spain
8bd53fb9-1357-4a10-8b8e-46d4847114e7 Estonia
ca17fceb-9ae1-41e6-a78b-30beb4c313b4 Belgium
eff05545-d082-4d30-82a1-4299f84b6cc2 Poland
d42c7868-09a5-4dda-b53c-ac442654b486 France
bbf51990-2977-4243-98c1-57edf86f4dd4 Sweden
837b9221-60a9-48a5-ad9c-6177e58b9216 Germany
0bc15dba-843c-41eb-88cc-7b42e9392182 Germany
ac1d526a-1447-42f2-b2df-0a70e1459d51 France
f3e90ffc-863a-4889-85a0-3f2e596c5c96 Hungary
c8412c91-54f8-4f06-bdeb-070a424decdb Spain
02b01ee3-0f2a-48c8-b744-3cba344d6df4 Bulgaria
e37ed47f-6ac9-4ab7-8f50-be91fcbb01fd Denmark
ca17fceb-9ae1-41e6-a78b-30beb4c313b4 Belgium
c682f9f7-2b32-4a42-a761-601a251e0510 Germany
5820f393-27fd-40c6-a1ae-1d7dcffbcdc4 Belgium
023c2e16-64b6-4eea-8c1f-fefece8e726d Norway
f4d5dab3-89f1-4e92-982d-711f1b5735dd Germany
b7d4c928-8123-49eb-a169-8ce67cba10b8 Sweden
c682f9f7-2b32-4a42-a761-601a251e0510 Germany
a423880c-7efa-4e86-bf00-bae2786b6019 Czech Republic
eff05545-d082-4d30-82a1-4299f84b6cc2 Poland
5820f393-27fd-40c6-a1ae-1d7dcffbcdc4 Belgium
81035425-ffbb-43df-9004-66af29cf7e82 Germany
e1ca1b66-379a-4054-9b96-c3531a2cd3cb Finland
b60fab2f-7fdb-4395-a58a-446fff323dbc Greece
d42c7868-09a5-4dda-b53c-ac442654b486 France
e1ca1b66-379a-4054-9b96-c3531a2cd3cb Finland
81035425-ffbb-43df-9004-66af29cf7e82 Germany
b2a0f79e-1a6d-4103-a7cb-705355db9892 Poland
e37ed47f-6ac9-4ab7-8f50-be91fcbb01fd Denmark
fbe73609-b4dc-4f9e-9004-43b852a1acee Croatia
023c2e16-64b6-4eea-8c1f-fefece8e726d Norway
25638da2-80ee-4b70-904c-a74d5d4928ab Portugal
837b9221-60a9-48a5-ad9c-6177e58b9216 Germany
fbe73609-b4dc-4f9e-9004-43b852a1acee Croatia
a1b79dc4-cb03-4939-831d-d63b4df0ed9a Netherlands
bbf51990-2977-4243-98c1-57edf86f4dd4 Sweden
8e113c7e-dae1-4346-b347-39c9d014eacb Hungary
0bc15dba-843c-41eb-88cc-7b42e9392182 Germany
b60fab2f-7fdb-4395-a58a-446fff323dbc Greece
25638da2-80ee-4b70-904c-a74d5d4928ab Portugal
22c99369-8fb8-4827-9049-843e123e7b15 Poland
f4d5dab3-89f1-4e92-982d-711f1b5735dd Germany
b2a0f79e-1a6d-4103-a7cb-705355db9892 Poland
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT5SE332ABFF000XXX
E-Number (Norway)4380269
EAN8056221004916
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight4.775 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width250 mm
Package Level 1 Height245 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight5.263 kg
Package Level 1 EAN8056221004916
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1115
1SDH002065A1131
Technical
Current TypeAC/DC
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Order Multiple1 piece
Power Loss16.9 W
Rated Current (In)320 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)1600…3200 A
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 30 kA
(525 V AC) 30 kA
(690 V AC) 25 kA
(250 V DC) 2 Poles in Series 30 kA
(500 V DC) 2 Poles in Series 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 30 kA
(525 V AC) 30 kA
(690 V AC) 25 kA
(250 V DC) 2 Poles in Series 35 kA
(500 V DC) 2 Poles in Series 35 kA
Rated Uninterrupted Current (Iu)400 A
ReleaseTMA
Release TypeTM
Setting Range224…320 A
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT5
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107680A2824
Mechanical Drawings1SDH002011A1101
Wiring Diagram1SDM000005A1001
Instructions and Manuals1SDH002011A1001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA100414R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 320 A
Rated voltage (EF003977) 690 V
Overload release current setting (EF002336) 128.0 A
Adjustment range undelayed short-circuit release (EF007131) 1600 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20
