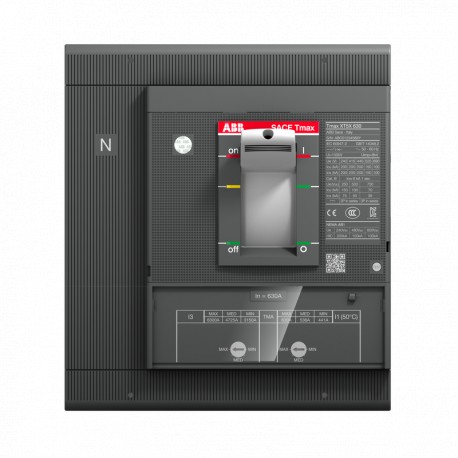

1SDA100389R1 ABB XT5N 630 TMA 630-6300 4p F F InN 100%In
1SDA100389R1
100389
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Functioning as an ABB 1SDA100389R1 molded case circuit breaker, this component provides reliable electrical distribution management and fault protection. Circuit breakers are essential safety components used throughout commercial and industrial facilities to interrupt excessive currents and protect downstream assets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2353
- Environmental Product Declaration - EPD: 9AKK108468A9746
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 59.6 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 4131236b-aa0d-47ab-9a2b-8f3c5d19c57f Italy
- Simplified SCIP: 5816e7db-abe9-4c05-a738-ea12c6060eb9 Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT5NE463BBFF000XXX
- E-Number (Norway): 4380401
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 4131236b-aa0d-47ab-9a2b-8f3c5d19c57f Italy |
| Simplified SCIP | 5816e7db-abe9-4c05-a738-ea12c6060eb9 Germany |
| 28bb605e-4489-4132-9d30-e92f87950629 Germany | |
| 0cedb20e-2898-4a38-a4a9-5c0eb63c2d29 Germany | |
| 182793c8-74c8-4fb8-849e-f045ccfb6535 France | |
| d4f7609f-c3a2-447f-895c-6250dd13a4fc Netherlands | |
| 652d1ab7-0c87-4b31-821a-872d1fc14fa7 Spain | |
| 096ffc39-48d8-4611-814b-f07a10f2e4fb Netherlands | |
| 2a7c0dc4-0b78-408f-83c9-9f51d5c32d72 Poland | |
| 1cacc69d-af59-4e6c-ac47-6f30e7b1652d Sweden | |
| 54ece4d5-4db7-444a-8511-ec5f9ed10043 Norway | |
| e1bad509-827f-4624-bf36-fac96fc8641f Finland | |
| bd18ea6e-a026-4c2c-a3ca-0aa08f24a868 Netherlands | |
| 38268596-651f-4e3e-b710-f5b0eed626ae Germany | |
| 513eae9d-a9a9-4d42-9eaf-810291f866fc Denmark | |
| 0a13f8a3-64c6-47cb-9ae6-503794a4295e Germany | |
| d598da0e-0b43-42da-b8a4-a67d0414b2f0 Croatia | |
| 134ec050-11a5-4480-97ed-e88f6650ae70 Czech Republic | |
| 5075578b-a15c-4372-a61c-9bb1210990ee Poland | |
| a65756f3-68b5-471c-a429-cf09db30e651 Netherlands | |
| 9fd2356b-d6cf-4ae7-87d0-b011648b24c4 Netherlands | |
| 9ae2fe0b-b78f-4f8b-9f7a-d370ff4c4272 Estonia | |
| 79f0f7b9-a9d1-47e0-87e7-0228421bd08a Greece | |
| 205e4fd7-1768-4833-b6bd-c0ba1a9eaa96 Portugal | |
| 2f72cae1-85a9-4dcd-989d-efa1c7709391 Bulgaria | |
| 1383336b-a0d2-466d-b3ea-8e06dd3f4d26 Sweden | |
| d3fe4698-52f3-4778-bcea-9dcbc0725446 Poland | |
| a0c43d77-c32b-4294-b9ea-62ba5965fa3f France | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5NE463BBFF000XXX |
| E-Number (Norway) | 4380401 |
| EAN | 8056221004664 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.6 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 6.088 kg |
| Package Level 1 EAN | 8056221004664 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1183 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC/DC |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | 47.8 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 3150…6300 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 6.25 kA | |
| (500 V DC) 2 Poles in Series 6.25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | TMA |
| Release Type | TM |
| Setting Range | 441…630 A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
