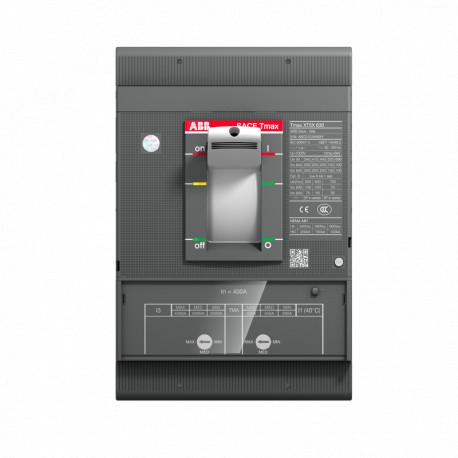

ABB 1SDA100347R1 1SDA100347R1 ABB XT5N 630 TMA 630-6300 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA100347R1 ABB XT5N 630 TMA 630-6300 3p F F

1SDA100347R1

100347

ABB

1 Pcs.

XT5N 630 TMA 630-6300 3p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2353
Environmental Product Declaration - EPD9AKK108468A9746
9AKK108468A1893
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 59.6 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP960d7d68-e5c3-43ed-a829-43e09c568bea Italy
Simplified SCIP01a6778a-8242-4cf5-b3cd-c747948646bd Belgium
a2093be5-5399-4c14-a5a4-fea82edda0bb Bulgaria
b96c874f-a066-4cec-a1d3-e34d72b3b295 Denmark
1308315b-d19d-41df-8680-9ad0c025c40a Germany
d440dd34-9bb6-4d47-b41a-5419570362df Norway
77fd31df-a542-416e-8aae-8f0252878a40 Germany
31601fff-05eb-4e85-bab3-f1a1230d16de Finland
01a6778a-8242-4cf5-b3cd-c747948646bd Belgium
1308315b-d19d-41df-8680-9ad0c025c40a Germany
3c0bb6b2-6300-4b85-997b-c9186010b08b Poland
b96c874f-a066-4cec-a1d3-e34d72b3b295 Denmark
0799605e-d1d2-4955-9ff7-c3d7eba468a4 Germany
4c241cd4-b821-47ee-81e2-2050766e77bb Czech Republic
4fefb43f-2fbb-4835-8831-3e6cd367fb31 Poland
1d77fa17-eb06-457f-9660-009dcea56840 Sweden
3c729486-cb2e-47b8-9efb-0fd19b22b81c Poland
5520b154-676c-4e1f-b5b6-a416945c374a Portugal
e13f46fd-a285-4878-8894-1184d6437373 Belgium
3c0bb6b2-6300-4b85-997b-c9186010b08b Poland
0799605e-d1d2-4955-9ff7-c3d7eba468a4 Germany
bfb947e0-f8eb-44b3-ab63-b83810859d98 Greece
aefb46ed-ea4a-44b5-8810-f3de8b160ffb Germany
5520b154-676c-4e1f-b5b6-a416945c374a Portugal
ed36bfcf-c699-4974-8fbb-3e5af1b68e3a Croatia
4c241cd4-b821-47ee-81e2-2050766e77bb Czech Republic
e25645f5-3d61-4213-86c0-64154b8f709a Hungary
89257528-5546-4401-8d98-ba5d11e2afc6 Germany
9e7ffc90-8fef-4b2d-9cb5-9d0e954aea1a Netherlands
a2093be5-5399-4c14-a5a4-fea82edda0bb Bulgaria
ed36bfcf-c699-4974-8fbb-3e5af1b68e3a Croatia
cdcd3ec3-60f5-4eb0-8ec9-69606e86b548 France
bfb947e0-f8eb-44b3-ab63-b83810859d98 Greece
d440dd34-9bb6-4d47-b41a-5419570362df Norway
28db8e97-1ba8-4869-99a5-ac291bc11cb7 Sweden
9e7ffc90-8fef-4b2d-9cb5-9d0e954aea1a Netherlands
31601fff-05eb-4e85-bab3-f1a1230d16de Finland
77fd31df-a542-416e-8aae-8f0252878a40 Germany
6330a9d3-d2d0-4e4e-8290-0affb081498c Hungary
78217c5b-280a-494d-a44c-bc91c7e5c861 Spain
e25645f5-3d61-4213-86c0-64154b8f709a Hungary
dc4726b8-87fb-4ea9-b1d4-70938145874e Estonia
3c729486-cb2e-47b8-9efb-0fd19b22b81c Poland
03579bc1-3cf9-4f0d-a34e-60d8689c874d France
6330a9d3-d2d0-4e4e-8290-0affb081498c Hungary
dc4726b8-87fb-4ea9-b1d4-70938145874e Estonia
e13f46fd-a285-4878-8894-1184d6437373 Belgium
78217c5b-280a-494d-a44c-bc91c7e5c861 Spain
aefb46ed-ea4a-44b5-8810-f3de8b160ffb Germany
03579bc1-3cf9-4f0d-a34e-60d8689c874d France
89257528-5546-4401-8d98-ba5d11e2afc6 Germany
28db8e97-1ba8-4869-99a5-ac291bc11cb7 Sweden
cdcd3ec3-60f5-4eb0-8ec9-69606e86b548 France
1d77fa17-eb06-457f-9660-009dcea56840 Sweden
4fefb43f-2fbb-4835-8831-3e6cd367fb31 Poland
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT5NE363BBFF000XXX
E-Number (Norway)4380246
EAN8056221004244
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight4.775 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width250 mm
Package Level 1 Height245 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight5.263 kg
Package Level 1 EAN8056221004244
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1115
1SDH002065A1131
Technical
Current TypeAC/DC
Electrical Durability5000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Order Multiple1 piece
Power Loss47.8 W
Rated Current (In)630 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)3150…6300 A
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 70 kA
(230 V AC) 70 kA
(240 V AC) 70 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 25 kA
(525 V AC) 25 kA
(690 V AC) 20 kA
(250 V DC) 2 Poles in Series 6.25 kA
(500 V DC) 2 Poles in Series 6.25 kA
Rated Short-time Withstand Current Low Voltage (Icw)6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 70 kA
(230 V AC) 70 kA
(240 V AC) 70 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 25 kA
(525 V AC) 25 kA
(690 V AC) 20 kA
(250 V DC) 2 Poles in Series 25 kA
(500 V DC) 2 Poles in Series 25 kA
Rated Uninterrupted Current (Iu)630 A
ReleaseTMA
Release TypeTM
Setting Range441…630 A
Short-Circuit Performance LevelN
StandardsIEC60947-2
Sub-typeXT5
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107680A2824
Mechanical Drawings1SDH002011A1101
Wiring Diagram1SDM000005A1001
Instructions and Manuals1SDH002011A1001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA100347R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 630 A
Rated voltage (EF003977) 690 V
Overload release current setting (EF002336) 252.0 A
Adjustment range undelayed short-circuit release (EF007131) 3150 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20
