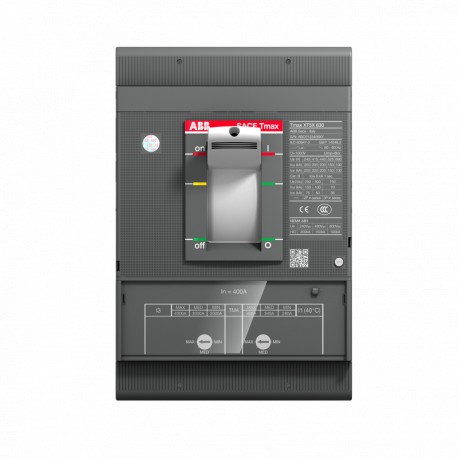

ABB 1SDA100346R1 1SDA100346R1 ABB XT5N 630 TMA 500-5000 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA100346R1 ABB XT5N 630 TMA 500-5000 3p F F

1SDA100346R1

100346

ABB

1 Pcs.

XT5N 630 TMA 500-5000 3p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2353
Environmental Product Declaration - EPD9AKK108468A9746
9AKK108468A1893
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 59.6 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP914eebce-a04a-4c26-ade4-63bb2f0f18b0 Italy
Simplified SCIPe2811b34-edbc-4ab5-b3d7-d122bfbc8eb7 Germany
5e85d089-0256-4701-a2f7-b1b6eeb1d10d Denmark
c01f7019-1c12-497d-a3db-de38ab46bd53 Bulgaria
e2b6cd6e-bcd8-44df-b3c7-b09139ed4fb1 Germany
8d943a49-ff7f-4815-b1ed-2d563dd2d5f6 Belgium
7b687abd-9641-407b-a7f2-7b6008641ada Norway
5a14e1fe-d67d-4ef8-9c80-ae9a3dd4616d Belgium
2b51cff0-6922-48fe-a8fa-7f7bf58c71b3 Poland
5e85d089-0256-4701-a2f7-b1b6eeb1d10d Denmark
f0c6e020-0476-4f08-a7b4-987cfef42d62 Czech Republic
c14fc30f-a5ac-433e-a1b9-9ef636f96ee9 Germany
97d14c9e-30a1-44f3-b3bf-152ea60f7ec6 Poland
b00d6e9f-bcc3-4c34-bdcd-030d7632c7a6 Finland
8d943a49-ff7f-4815-b1ed-2d563dd2d5f6 Belgium
67a678af-b43d-431d-9f8c-03b34c398595 Sweden
e2b6cd6e-bcd8-44df-b3c7-b09139ed4fb1 Germany
d2966d57-02f2-4d34-8f12-48b4f04c266c Poland
b33ba305-eb01-4fba-9fde-49d7ee8cacb2 Greece
91979fb1-1c3e-4ffc-ad45-f54609a159a5 Portugal
2b51cff0-6922-48fe-a8fa-7f7bf58c71b3 Poland
c14fc30f-a5ac-433e-a1b9-9ef636f96ee9 Germany
51e7b131-3187-4cf3-9778-bf2e65138f18 Netherlands
aa28553d-967f-4fc1-a872-9620a5efa91e Sweden
b00d6e9f-bcc3-4c34-bdcd-030d7632c7a6 Finland
49f90be8-0bff-4539-bfe5-a282720d3165 France
e2811b34-edbc-4ab5-b3d7-d122bfbc8eb7 Germany
ef691b67-e9c4-4a1f-8a37-138bfdbfeeb4 Croatia
7b687abd-9641-407b-a7f2-7b6008641ada Norway
b33ba305-eb01-4fba-9fde-49d7ee8cacb2 Greece
ef691b67-e9c4-4a1f-8a37-138bfdbfeeb4 Croatia
91979fb1-1c3e-4ffc-ad45-f54609a159a5 Portugal
277677d4-0bcf-409b-9aae-94ae0e915eb3 Germany
6697e47c-f58d-4fe5-8bd0-1c21873a7878 Germany
eb2556fc-9b64-4e7e-82bd-939aaee1782b Hungary
f0c6e020-0476-4f08-a7b4-987cfef42d62 Czech Republic
51e7b131-3187-4cf3-9778-bf2e65138f18 Netherlands
c01f7019-1c12-497d-a3db-de38ab46bd53 Bulgaria
2f1df85f-fb39-444d-a70e-c747237f6059 France
be56c6ee-df04-4f4d-aacb-1c4ec9a87d6d Hungary
5eec3674-b19e-47ce-ae08-16761dd6e042 Spain
be56c6ee-df04-4f4d-aacb-1c4ec9a87d6d Hungary
cc8425bf-d569-4813-a7c8-3036307642fd Estonia
5a14e1fe-d67d-4ef8-9c80-ae9a3dd4616d Belgium
eb2556fc-9b64-4e7e-82bd-939aaee1782b Hungary
2f1df85f-fb39-444d-a70e-c747237f6059 France
d2966d57-02f2-4d34-8f12-48b4f04c266c Poland
cc8425bf-d569-4813-a7c8-3036307642fd Estonia
6697e47c-f58d-4fe5-8bd0-1c21873a7878 Germany
277677d4-0bcf-409b-9aae-94ae0e915eb3 Germany
aa28553d-967f-4fc1-a872-9620a5efa91e Sweden
49f90be8-0bff-4539-bfe5-a282720d3165 France
67a678af-b43d-431d-9f8c-03b34c398595 Sweden
97d14c9e-30a1-44f3-b3bf-152ea60f7ec6 Poland
5eec3674-b19e-47ce-ae08-16761dd6e042 Spain
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT5NE350BBFF000XXX
E-Number (Norway)4380245
EAN8056221004237
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight4.775 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width250 mm
Package Level 1 Height245 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight5.263 kg
Package Level 1 EAN8056221004237
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1115
1SDH002065A1131
Technical
Current TypeAC/DC
Electrical Durability5000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Order Multiple1 piece
Power Loss33.5 W
Rated Current (In)500 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)2500…5000 A
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 70 kA
(230 V AC) 70 kA
(240 V AC) 70 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 25 kA
(525 V AC) 25 kA
(690 V AC) 20 kA
(250 V DC) 2 Poles in Series 6.25 kA
(500 V DC) 2 Poles in Series 6.25 kA
Rated Short-time Withstand Current Low Voltage (Icw)6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 70 kA
(230 V AC) 70 kA
(240 V AC) 70 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 25 kA
(525 V AC) 25 kA
(690 V AC) 20 kA
(250 V DC) 2 Poles in Series 25 kA
(500 V DC) 2 Poles in Series 25 kA
Rated Uninterrupted Current (Iu)630 A
ReleaseTMA
Release TypeTM
Setting Range350…500 A
Short-Circuit Performance LevelN
StandardsIEC60947-2
Sub-typeXT5
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107680A2824
Mechanical Drawings1SDH002011A1101
Wiring Diagram1SDM000005A1001
Instructions and Manuals1SDH002011A1001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA100346R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 500 A
Rated voltage (EF003977) 690 V
Overload release current setting (EF002336) 200.0 A
Adjustment range undelayed short-circuit release (EF007131) 2500 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20

Product Datasheet
