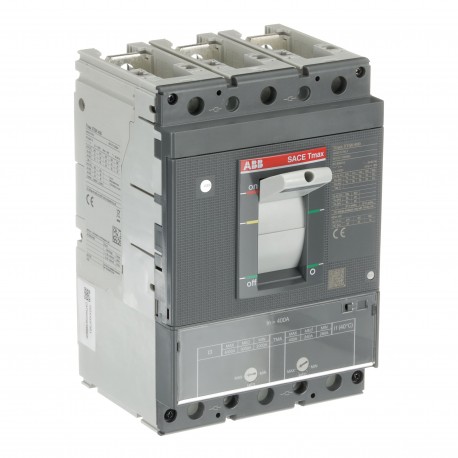

ABB 1SDA100345R1 1SDA100345R1 ABB XT5N 400 TMA 400-4000 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA100345R1 ABB XT5N 400 TMA 400-4000 3p F F

1SDA100345R1

100345

ABB

1 Pcs.

XT5N 400 TMA 400-4000 3p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2353
Environmental Product Declaration - EPD9AKK108468A9746
9AKK108468A1893
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 59.6 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP7affa64c-adcd-476f-89ff-6e49b6bca197 Italy
Simplified SCIP1e0c266e-3e17-4075-b677-352a54b8e7b0 Denmark
459d7944-828c-435f-8739-be4619b51bd5 Bulgaria
8f887146-9a43-4654-be1d-4aa9745270bd Germany
6d3443c5-f72f-492f-a5ee-749ca0036f0b Poland
f3ac34f3-524f-43fb-b8a7-5b83c55071ae Belgium
5c27ca53-2a5c-4488-ae7a-c4a5adc58f45 Belgium
d04887a7-d5e4-4608-99c6-edba1faca095 Germany
5948241c-ea53-4631-8000-27b71d77d252 Norway
5008162f-5739-4631-9cab-89e61e9e5cd0 Finland
5c27ca53-2a5c-4488-ae7a-c4a5adc58f45 Belgium
61350103-c802-4335-a4ca-1f61faa02492 Sweden
d04887a7-d5e4-4608-99c6-edba1faca095 Germany
262b88de-c3c8-43e5-98ac-c383239d15e3 Czech Republic
6d3443c5-f72f-492f-a5ee-749ca0036f0b Poland
0a9498c7-0d05-469f-abac-3d669e38e78d Poland
4af56212-2fcb-4335-bacb-069d25dffee8 Germany
1e0c266e-3e17-4075-b677-352a54b8e7b0 Denmark
4af56212-2fcb-4335-bacb-069d25dffee8 Germany
c4243989-3779-41ff-b138-9e4ee984d1bc Poland
b3290f26-6e62-4d5a-a45e-b18271e9ed25 Portugal
c2f23de2-c1f9-4731-ad8d-6292f046efcb Greece
3ffba179-c6e2-4e37-a756-6582ac233bca Hungary
ccb46602-b602-491f-b888-51c86f1c28d3 Germany
77e37cfc-7912-4c5f-b389-76182840d593 Croatia
b3290f26-6e62-4d5a-a45e-b18271e9ed25 Portugal
b0f9d7e3-b90c-47e1-bced-631c5eca8b0a Germany
5948241c-ea53-4631-8000-27b71d77d252 Norway
c2f23de2-c1f9-4731-ad8d-6292f046efcb Greece
77e37cfc-7912-4c5f-b389-76182840d593 Croatia
be6b53eb-2e2b-4e54-8553-36748553deb8 France
8f887146-9a43-4654-be1d-4aa9745270bd Germany
41b18c5f-2334-497d-ad81-0c5a091b97af Sweden
9a96a8f9-592b-4ca8-8a1d-2313cbbcb6c5 Netherlands
5008162f-5739-4631-9cab-89e61e9e5cd0 Finland
5dd335e0-bb09-4aa5-b997-e85c1d7efde6 Hungary
6c221fc5-26f1-4ed9-808f-c24bbe4eed04 Spain
bb2394bb-47a3-497d-acc1-c36b69dfe409 Estonia
9a96a8f9-592b-4ca8-8a1d-2313cbbcb6c5 Netherlands
3ffba179-c6e2-4e37-a756-6582ac233bca Hungary
459d7944-828c-435f-8739-be4619b51bd5 Bulgaria
262b88de-c3c8-43e5-98ac-c383239d15e3 Czech Republic
c4243989-3779-41ff-b138-9e4ee984d1bc Poland
11a47997-b948-4d73-ab2a-8994d10e93f0 France
f3ac34f3-524f-43fb-b8a7-5b83c55071ae Belgium
bb2394bb-47a3-497d-acc1-c36b69dfe409 Estonia
6c221fc5-26f1-4ed9-808f-c24bbe4eed04 Spain
5dd335e0-bb09-4aa5-b997-e85c1d7efde6 Hungary
be6b53eb-2e2b-4e54-8553-36748553deb8 France
41b18c5f-2334-497d-ad81-0c5a091b97af Sweden
11a47997-b948-4d73-ab2a-8994d10e93f0 France
ccb46602-b602-491f-b888-51c86f1c28d3 Germany
b0f9d7e3-b90c-47e1-bced-631c5eca8b0a Germany
0a9498c7-0d05-469f-abac-3d669e38e78d Poland
61350103-c802-4335-a4ca-1f61faa02492 Sweden
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT5NE340ABFF000XXX
E-Number (Finland)3641302
E-Number (Norway)4380244
EAN8056221004220
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight4.775 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width250 mm
Package Level 1 Height245 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight5.263 kg
Package Level 1 EAN8056221004220
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002065A1115
1SDH002065A1131
Technical
Current TypeAC/DC
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Order Multiple1 piece
Power Loss24.1 W
Rated Current (In)400 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)2000…4000 A
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 70 kA
(230 V AC) 70 kA
(240 V AC) 70 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 25 kA
(525 V AC) 25 kA
(690 V AC) 20 kA
(250 V DC) 2 Poles in Series 25 kA
(500 V DC) 2 Poles in Series 25 kA
Rated Short-time Withstand Current Low Voltage (Icw)5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 70 kA
(230 V AC) 70 kA
(240 V AC) 70 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 25 kA
(525 V AC) 25 kA
(690 V AC) 20 kA
(250 V DC) 2 Poles in Series 25 kA
(500 V DC) 2 Poles in Series 25 kA
Rated Uninterrupted Current (Iu)400 A
ReleaseTMA
Release TypeTM
Setting Range280…400 A
Short-Circuit Performance LevelN
StandardsIEC60947-2
Sub-typeXT5
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107680A2824
Mechanical Drawings1SDH002011A1101
Wiring Diagram1SDM000005A1001
Instructions and Manuals1SDH002011A1001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA100345R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 400 A
Rated voltage (EF003977) 690 V
Overload release current setting (EF002336) 160.0 A
Adjustment range undelayed short-circuit release (EF007131) 2000 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
