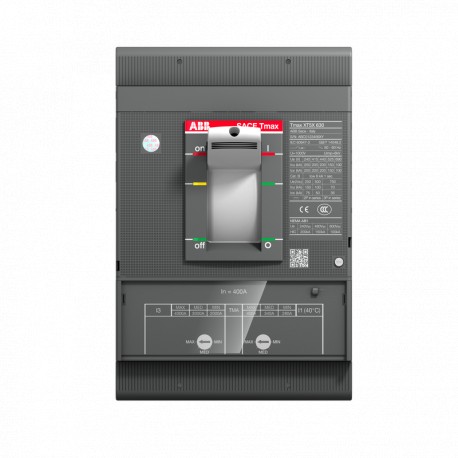

1SDA100344R1 ABB XT5N 400 TMA 320-3200 3p F F
1SDA100344R1
100344
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA100344R1 ABB XT5N 400 TMA 320-3200 3p F F is a thermal-magnetic molded case circuit breaker deployed in commercial and industrial electrical distribution setups for reliable circuit protection. This device interrupts abnormal current spikes and thermal overloads to prevent damage to downstream electrical equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2353
- Environmental Product Declaration - EPD: 9AKK108468A9746
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 59.6 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: f0e7ad29-136d-4bd7-b18e-91d1416edbfd Italy
- Simplified SCIP: 8555d156-8857-4884-9e21-ab304652f1cb Norway
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT5NE332ABFF000XXX
- E-Number (Finland): 3641301
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | f0e7ad29-136d-4bd7-b18e-91d1416edbfd Italy |
| Simplified SCIP | 8555d156-8857-4884-9e21-ab304652f1cb Norway |
| 2f2ab2c8-6228-47dd-92ce-24bf997ac2f4 Poland | |
| 4bfc5380-9d17-454e-856e-d16d73a70653 Germany | |
| 9086c312-e77d-4ea1-9f17-6d502b9855a7 France | |
| 7e239aac-60fa-4279-aa08-f9b5d9431dca Poland | |
| ecdcee1e-3d9d-4c46-b590-ad304cb2194a Spain | |
| 8034f7be-163c-4dbc-8801-555398f3a448 Germany | |
| 709a5cdb-5fb2-4574-ac42-4fb698fdda29 Hungary | |
| cc916cf6-e7f9-4e4f-8cc7-9be90c708c83 Belgium | |
| 3b7d0c22-f8ca-4130-a705-c9eab41965e0 Netherlands | |
| 9a94e3d2-050a-4006-b9cc-f9273b3e5a46 Czech Republic | |
| af4d4c55-5f56-4b4e-975d-4987b762ad8a Greece | |
| 44d88171-5118-42ae-a976-69a6d5f86b3a Croatia | |
| 187aa3d0-a5be-47c1-befc-8b67f7fe65a4 Portugal | |
| 742045f3-a872-43d8-b6a7-089f6aae4149 Germany | |
| 6c1f05bf-c9d9-4926-b883-e28a55039fdc Bulgaria | |
| e4d16aea-22a5-460e-91c5-08133e208223 Poland | |
| ae326c03-068f-4417-8875-3b7813122013 France | |
| 59bff4da-1985-4ccc-b353-4136962c4bf6 Sweden | |
| 22d5d8cf-7517-4494-9dd6-1908f109ebce Germany | |
| 19252450-f226-4482-ab1e-ada60ab83e8a Belgium | |
| ce5b8f99-fdf2-4af5-a5e0-2353f98b2ef0 Finland | |
| 0ff5c52f-5316-4aa6-826f-6f38abfeb987 Denmark | |
| a5acc881-e6bb-435b-86b9-92aeacd82e92 Germany | |
| f5012da2-d569-4b13-b2db-140eba347d5d Sweden | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5NE332ABFF000XXX |
| E-Number (Finland) | 3641301 |
| E-Number (Norway) | 4380243 |
| EAN | 8056221004213 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.775 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.263 kg |
| Package Level 1 EAN | 8056221004213 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC/DC |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 16.9 W |
| Rated Current (In) | 320 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 1600…3200 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | TMA |
| Release Type | TM |
| Setting Range | 224…320 A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
