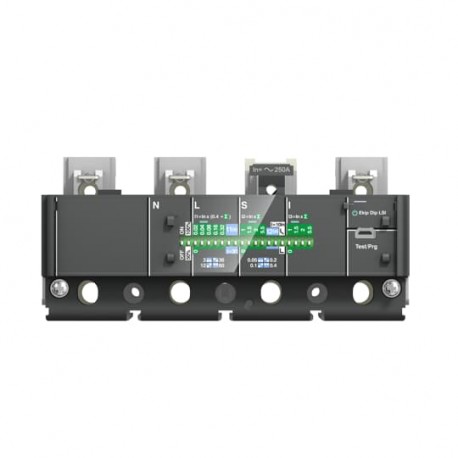

ABB 1SDA100339R1 1SDA100339R1 ABB Ekip Dip LIG In 40A XT4 4p View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA100339R1 ABB Ekip Dip LIG In 40A XT4 4p

1SDA100339R1

100339

ABB

1 Pcs.

Ekip Dip LIG In=40A XT4 4p SOLID-STATE RELEASE FOUR-POLE IN AC EKIP DIP LIG R 40 XT4

Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

b'

General Information

Extended Product Type:
Ekip Dip LIG In=40A XT4 4p
Product ID:
1SDA100339R1
EAN:
8056221004169
Catalog Description:
Ekip Dip LIG In=40A XT4 4p
Long Description:
SOLID-STATE RELEASE FOUR-POLE IN AC EKIP DIP LIG R 40 XT4
\n

Ordering

EAN:
8056221004169
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
110 mm
Product Net Height:
100 mm
Product Net Depth / Length:
150 mm
Product Net Weight:
1 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
100 mm
Package Level 1 Depth / Length:
150 mm
Package Level 1 Gross Weight:
1.1 kg
Package Level 1 EAN:
8056221004169

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Configuration Type:
Loose or configurable
Current Type:
AC
Number of Poles:
4
Order Multiple:
1 piece
Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
ACC
Rated Current (In):
40 A
Release:
Ekip Dip LIG
Release Type:
EL
Standards:
IEC
Suitable For:
XT4

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC210100D0205
1SDC210099D0205
Instructions and Manuals:\n1SDH000721R0505

Classifications

ETIM 6:
EC001023 - Shunt release (for power circuit breaker)
ETIM 7:
EC001023 - Shunt release (for power circuit breaker)
Object Classification Code:
Q
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
