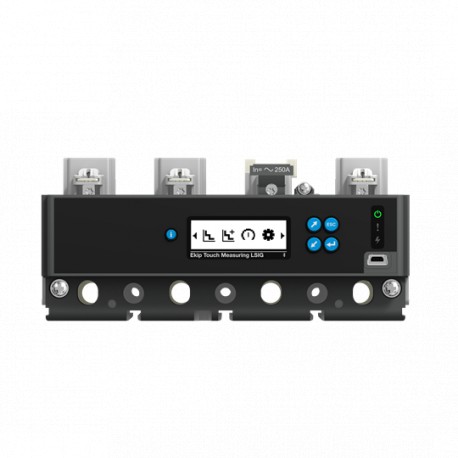

ABB 1SDA100330R1 1SDA100330R1 ABB Ekip Hi-Touch LSI In 100A XT4 4p View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA100330R1 ABB Ekip Hi-Touch LSI In 100A XT4 4p

1SDA100330R1

100330

ABB

1 Pcs.

Ekip Hi-Touch LSI In=100A XT4 4p SOLID-STATE RELEASE FOUR-POLE IN AC EKIP HI-TOUCH LSI R 100 XT4

Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This solid-state release unit, manufactured by Abb under part number 1SDA100330R1, serves as an intelligent monitoring component for electrical circuit breakers, managing overcurrent protection in demanding distribution setups. These electronic releases provide adjustable tripping parameters for heavy-duty operational safety.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Abb
  • Manufacturer part number: 1SDA100330R1
  • Catalogue code: 100330
  • Catalogue title: 1SDA100330R1 ABB Ekip Hi-Touch LSI In 100A XT4 4p
  • Product description: b' General Information Extended Product Type: Ekip Hi-Touch LSI In=100A XT4 4p Product ID: 1SDA100330R1 EAN: 8056221004077 Catalog Description: Ekip Hi-Touch LSI In=100A XT4 4p Long Description: SOLID-STATE RELEASE FOUR-
  • Manufacturer summary: Ekip Hi-Touch LSI In=100A XT4 4p SOLID-STATE RELEASE FOUR-POLE IN AC EKIP HI-TOUCH LSI R 100 XT4

More info

▲

b'

General Information

Extended Product Type:
Ekip Hi-Touch LSI In=100A XT4 4p
Product ID:
1SDA100330R1
EAN:
8056221004077
Catalog Description:
Ekip Hi-Touch LSI In=100A XT4 4p
Long Description:
SOLID-STATE RELEASE FOUR-POLE IN AC EKIP HI-TOUCH LSI R 100 XT4
\n

Ordering

EAN:
8056221004077
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
110 mm
Product Net Height:
100 mm
Product Net Depth / Length:
150 mm
Product Net Weight:
1 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
100 mm
Package Level 1 Depth / Length:
150 mm
Package Level 1 Gross Weight:
1.1 kg
Package Level 1 EAN:
8056221004077

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Configuration Type:
Loose or configurable
Current Type:
AC
Number of Poles:
4
Order Multiple:
1 piece
Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
ACC
Rated Current (In):
100 A
Release:
Ekip Hi-Touch LSI
Release Type:
EL
Standards:
IEC
Suitable For:
XT4

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC210100D0205
1SDC210099D0205
Instructions and Manuals:\n1SDH002031A1002

Classifications

ETIM 6:
EC001023 - Shunt release (for power circuit breaker)
ETIM 7:
EC001023 - Shunt release (for power circuit breaker)
Object Classification Code:
Q
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'
