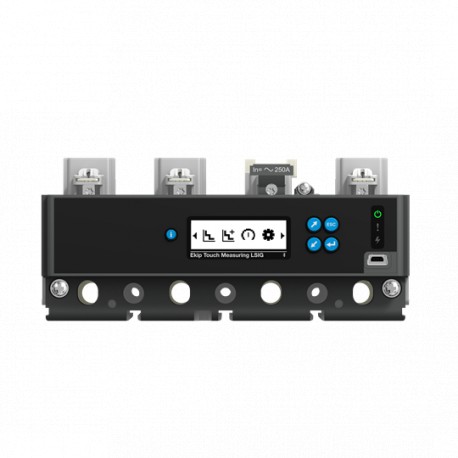

1SDA100329R1 ABB Ekip Touch Measuring LSIG In 250A XT4 4p
1SDA100329R1
100329
ABB
1 Pcs.
Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB touch-measuring electronic release module, designated as part number 1SDA100329R1, delivers high-accuracy monitoring and protection for advanced industrial circuit breakers. These microprocessor units feature integrated measurement capabilities to analyze power quality and isolate electrical faults promptly. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Abb
- Manufacturer part number: 1SDA100329R1
- Catalogue code: 100329
- Catalogue title: 1SDA100329R1 ABB Ekip Touch Measuring LSIG In 250A XT4 4p
- Product description: b' General Information Extended Product Type: Ekip Touch Measuring LSIG In=250A XT4 4p Product ID: 1SDA100329R1 EAN: 8056221004060 Catalog Description: Ekip Touch Measuring LSIG In=250A XT4 4p Long Description: SOLID-STA;
- Manufacturer summary: Ekip Touch Measuring LSIG In=250A XT4 4p SOLID-STATE RELEASE FOUR-POLE IN AC EKIP TOUCH MEASURING LSIG R 250 XT4
More info
▲b'
General Information
Ekip Touch Measuring LSIG In=250A XT4 4p
1SDA100329R1
8056221004060
Ekip Touch Measuring LSIG In=250A XT4 4p
SOLID-STATE RELEASE FOUR-POLE IN AC EKIP TOUCH MEASURING LSIG R 250 XT4
Ordering
8056221004060
1 piece
85389099
Dimensions
110 mm
100 mm
150 mm
1 kg
Container Information
1 piece
110 mm
100 mm
150 mm
1.1 kg
8056221004060
Additional Information
Power Distribution
Loose or configurable
AC
4
1 piece
Accessories for Tmax XT
Accessory
ACC
250 A
Ekip Touch Measuring LSIG
EL
IEC
XT4
Certificates and Declarations (Document Number)
Classifications
EC001023 - Shunt release (for power circuit breaker)
EC001023 - Shunt release (for power circuit breaker)
Q
5. Small Equipment (No External Dimension More Than 50 cm)
