1SDA100309R1 ABB Ekip Dip LSI In 63A XT4 4p
1SDA100309R1
1SDA100309R1
ABB
1 Pcs.
Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

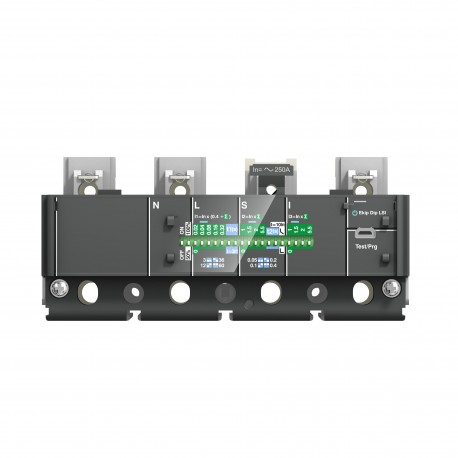

An ABB Ekip Dip LSI In 63A XT4 4p trip unit (1SDA100309R1) serves as an electronic protection release for molded case circuit breakers, offering adjustable thresholds for overload, selective short-circuit, and instantaneous protection. These units are deployed in electrical distribution boards to ensure selective coordination and safeguard downstream infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- EAN: 8056221003865
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 110 mm
- Package Level 1 Height: 100 mm
- Package Level 1 Depth / Length: 150 mm
- Package Level 1 Gross Weight: 1.1 kg
- Package Level 1 EAN: 8056221003865
- Circuit Breaker Type to be Associated: Power Distribution
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Ordering | |
| EAN | 8056221003865 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 110 mm |
| Package Level 1 Height | 100 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Gross Weight | 1.1 kg |
| Package Level 1 EAN | 8056221003865 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT4 |
| Suitable for Product Class | SACE Tmax XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC |
| Number of Poles | 4P |
| Rated Current (In) | 63 A |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000721R0510 |
| 1SDH000721R0505 | |
| External Classifications and Standards | |
| ETIM 9 | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 10 | EC001023 - Shunt release (for power circuit breaker) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
