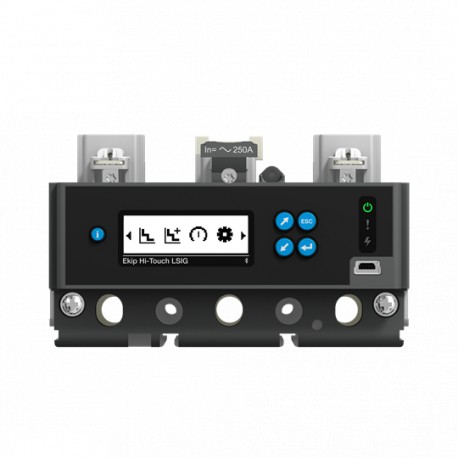

ABB 1SDA100295R1 1SDA100295R1 ABB SOLID-STATE RELEASE THREE-POLE IN AC EKIP HI-TOUCH LSIG R 160 XT4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA100295R1 ABB SOLID-STATE RELEASE THREE-POLE IN AC EKIP HI-TOUCH LSIG R 160 XT4

1SDA100295R1

100295

ABB

1 Pcs.

SOLID-STATE RELEASE THREE-POLE IN AC EKIP HI-TOUCH LSIG R 160 XT4

Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

b'

General Information

Extended Product Type:
Ekip Hi-Touch LSIG In=160A XT4 3p
Product ID:
1SDA100295R1
EAN:
8056221003490
Catalog Description:
Ekip Hi-Touch LSIG In=160A XT4 3p
Long Description:
SOLID-STATE RELEASE THREE-POLE IN AC EKIP HI-TOUCH LSIG R 160 XT4
\n

Ordering

EAN:
8056221003490
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
110 mm
Product Net Height:
100 mm
Product Net Depth / Length:
150 mm
Product Net Weight:
1 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
100 mm
Package Level 1 Depth / Length:
150 mm
Package Level 1 Gross Weight:
1.1 kg
Package Level 1 EAN:
8056221003490

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Configuration Type:
Loose or configurable
Current Type:
AC
Number of Poles:
3
Order Multiple:
1 piece
Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
ACC
Rated Current (In):
160 A
Release:
Ekip Hi-Touch LSIG
Release Type:
EL
Standards:
IEC
Suitable For:
XT4

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC210100D0205
1SDC210099D0205
Instructions and Manuals:\n1SDH002031A1002

Classifications

ETIM 6:
EC001023 - Shunt release (for power circuit breaker)
ETIM 7:
EC001023 - Shunt release (for power circuit breaker)
Object Classification Code:
Q
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
