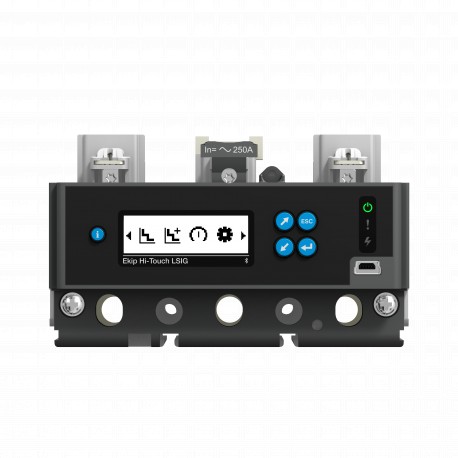

1SDA100290R1 ABB Ekip Touch Measuring LSIG In 250A XT4 3p
1SDA100290R1
100290
ABB
1 Pcs.
Ekip Touch Measuring LSIG In=250A XT4 3p
Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An electronic measuring trip unit, designated as the Abb 1SDA100290R1 model, provides comprehensive electrical metering and overcurrent protection functions inside circuit breaker assemblies. It allows maintenance personnel to monitor electrical parameters closely while ensuring system safety.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: ccccc4e9-954a-4d53-9410-e13665b20962 Italy (IT)
- Simplified SCIP: c197bd9e-10f7-4f8d-ba83-8ac088cb095e Germany (DE)
- EAN: 8056221003445
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 110 mm
- Package Level 1 Height: 100 mm
- Package Level 1 Depth / Length: 150 mm
