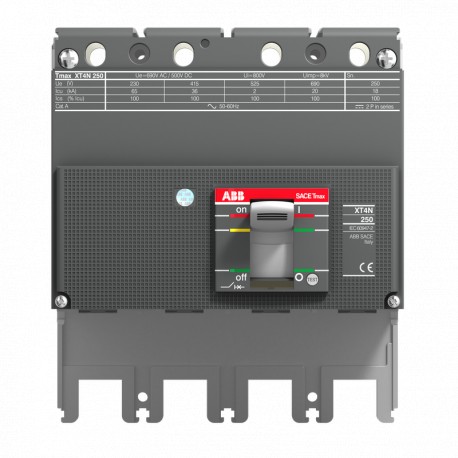

1SDA100268R1 ABB XT4X 250 INTERRUPT PART 4p F F

1SDA100268R1

100268

ABB

1 Pcs.

XT4X 250 INTERRUPT PART 4p F F XT4X 250 BREAKING PART 4p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2351
Environmental Product Declaration - EPD9AKK108469A1857
9AKK108468A1892
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 56.30 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
E-Number (Finland)3641122
E-Number (Norway)4380189
EAN8056221003223
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Width140 mm
Product Net Height160 mm
Product Net Depth / Length82.5 mm
Product Net Weight10.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width305 mm
Package Level 1 Height285 mm
Package Level 1 Depth / Length370 mm
Package Level 1 Gross Weight12.5 kg
Package Level 1 EAN8056221003223
Additional Information
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeBreaking Part
VersionF
Technical
Electrical Durability120 cycles per hour
10000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4P
Opening TimeCB with SOR 30 ms
CB with UVR 30 ms
Order Multiple1 piece
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 200 kA
(230 V AC) 200 kA
(240 V AC) 200 kA
(380 V AC) 200 kA
(415 V AC) 200 kA
(440 V AC) 200 kA
(500 V AC) 100 kA
(525 V AC) 100 kA
(690 V AC) 100 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 200 kA
(230 V AC) 200 kA
(240 V AC) 200 kA
(380 V AC) 200 kA
(415 V AC) 200 kA
(440 V AC) 200 kA
(500 V AC) 100 kA
(525 V AC) 100 kA
(690 V AC) 100 kA
(250 V DC) 2 Poles in Series 100 kA
(500 V DC) 2 Poles in Series 100 kA
(500 V DC) 3 Poles in Series 100 kA
(750 V DC) 3 Poles in Series 70 kA
Rated Uninterrupted Current (Iu)250 A
Short-Circuit Performance LevelX
StandardsIEC60947-2
Sub-typeXT4
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5529
Instructions and Manuals1SDH000722R0001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
