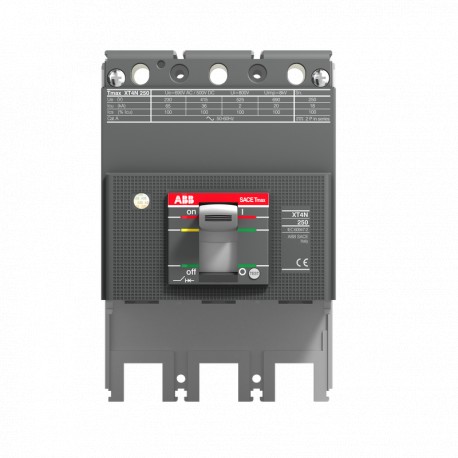

1SDA100261R1 ABB XT4V 160 INTERRUPT PART 3p F F
1SDA100261R1
100261
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed by Abb, the 1SDA100261R1 ABB XT4V 160 INTERRUPT PART 3p F F acts as a circuit breaker interrupt part utilized in modular electrical distribution assemblies to clear fault currents. These components allow technicians to configure custom protective solutions for industrial machinery and power distribution switchgear.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 56.30 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 9AKK108468A2351
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Product Declaration - EPD: 9AKK108469A1857
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: cd53ac7b-fb27-4cd5-bbfd-d93be1d57bf5 Italy (IT)
- Simplified SCIP: 6c434b54-0713-4bd7-822f-1a1a5e2ac9c1 Germany (DE)
- E-Number (Finland): 3641115
- EAN: 8056221003155
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 56.30 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2351 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108469A1857 |
| 9AKK108468A1892 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | cd53ac7b-fb27-4cd5-bbfd-d93be1d57bf5 Italy (IT) |
| Simplified SCIP | 6c434b54-0713-4bd7-822f-1a1a5e2ac9c1 Germany (DE) |
| cf94df9b-bece-415e-8d41-448b6ce41663 Netherlands (NL) | |
| 798b9105-18b1-4b21-aefe-87a2290ca374 Estonia (EE) | |
| 90fef06b-66fd-4716-b538-22caf3644a73 Greece (GR) | |
| 017b6d4a-36ad-4ff1-aa22-f78d91cd5df4 Portugal (PT) | |
| f33e474c-b2a8-4a06-8c42-ac78ad63b162 Bulgaria (BG) | |
| 3abcce60-a306-4e03-a07a-7494f351f364 Sweden (SE) | |
| 4bcf911a-4073-425f-9c78-c1395acbbac0 Poland (PL) | |
| aa5b204e-c0de-45ba-8105-ff5c9d2336c7 France (FR) | |
| 438e8f84-d83f-4aac-a5f6-f775fd7eb509 Sweden (SE) | |
| d2e8f054-51df-4c14-a8d3-0897b05c7ab1 Germany (DE) | |
| 7e0a6d40-9fe9-4102-b9d4-65393430fd6d Germany (DE) | |
| e7691435-19a7-40b7-a5cd-6263c8241432 France (FR) | |
| 41d94e56-13da-4497-9c25-36b58edd5d82 Netherlands (NL) | |
| fd77a899-5246-43d2-9135-176fbfb75d78 Spain (ES) | |
| a70be5e5-022a-47a6-bf32-c69ee332144d Netherlands (NL) | |
| cc608d74-f040-41ad-aa13-b829bff484b1 Norway (NO) | |
| db816a06-7f4a-441a-a7b3-4f0c76498f40 Finland (FI) | |
| df9a786f-dad5-41ac-8525-0684a3c41dc7 Netherlands (NL) | |
| d761fc59-cc66-4244-862a-100446bb3c49 Germany (DE) | |
| b56c3885-80c8-4965-aa4f-0bc5ef35ffbc Denmark (DK) | |
| e1390365-9982-4988-950b-3b3e996d977e Poland (PL) | |
| 534dedd3-9204-4fa5-bb33-f3ef3a03a2c5 Germany (DE) | |
| fb4b82d4-660e-4e08-be48-be25d9b7a766 Croatia (HR) | |
| e0347387-9704-4a11-b71e-7ad3592eda81 Czech Republic (CZ) | |
| b7b4b8b7-9659-4d32-8351-66346fb5221c Poland (PL) | |
| d3dc7c94-7dcf-42f1-bc80-bab6669c377a Netherlands (NL) | |
| Ordering | |
| E-Number (Finland) | 3641115 |
| EAN | 8056221003155 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 105 mm |
| Product Net Height | 160 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.6 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 2 kg |
| Package Level 1 EAN | 8056221003155 |
| Additional Information | |
| Electrical Durability | 120 cycles per hour |
| 10000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 3 |
| Order Multiple | 1 piece |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 150 kA | |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 70 kA | |
| (690 V AC) 50 kA | |
| (250 V DC) 2 Poles in Series 100 kA | |
| (500 V DC) 2 Poles in Series 100 kA | |
| (500 V DC) 3 Poles in Series 100 kA | |
| (750 V DC) 3 Poles in Series 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 150 kA | |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 70 kA | |
| (690 V AC) 50 kA | |
| (250 V DC) 2 Poles in Series 100 kA | |
| (500 V DC) 2 Poles in Series 100 kA | |
| (500 V DC) 3 Poles in Series 100 kA | |
| (750 V DC) 3 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Short-Circuit Performance Level | V |
| Standards | IEC60947-2 |
| Sub-type | XT4 |
| Terminal Connection Type | Front |
| Version | F |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5529 |
| Instructions and Manuals | 1SDH000722R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
