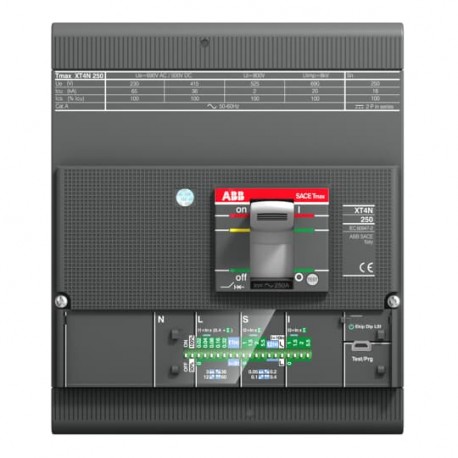

ABB 1SDA100198R1 1SDA100198R1 ABB XT4N 160 Ekip Dip LIG In 100A 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA100198R1 ABB XT4N 160 Ekip Dip LIG In 100A 4p F F

1SDA100198R1

100198

ABB

1 Pcs.

XT4N 160 Ekip Dip LIG In=100A 4p F F C.BREAKER TMAX XT4N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP DIP LIG R 100 A

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Abb 1SDA100198R1 four-pole circuit-breaker is designed to manage power distribution safely while disconnecting faulty circuit paths during electrical faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Abb
  • Manufacturer part number: 1SDA100198R1
  • Catalogue code: 100198
  • Catalogue title: 1SDA100198R1 ABB XT4N 160 Ekip Dip LIG In 100A 4p F F
  • Product description: b' General Information Extended Product Type: XT4N 160 Ekip Dip LIG In=100A 4p F F Product ID: 1SDA100198R1 EAN: 8056221002523 Catalog Description: XT4N 160 Ekip Dip LIG In=100A 4p F F Long Description: C.BREAKER TMAX XT
  • Manufacturer summary: XT4N 160 Ekip Dip LIG In=100A 4p F F C.BREAKER TMAX XT4N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP DIP LIG R 100 A

More info

▲

b'

General Information

Extended Product Type:
XT4N 160 Ekip Dip LIG In=100A 4p F F
Product ID:
1SDA100198R1
EAN:
8056221002523
Catalog Description:
XT4N 160 Ekip Dip LIG In=100A 4p F F
Long Description:
C.BREAKER TMAX XT4N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP DIP LIG R 100 A
\n

Ordering

EAN:
8056221002523
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
140 mm
Product Net Height:
160 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
3.05 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
145 mm
Package Level 1 Height:
210 mm
Package Level 1 Depth / Length:
168 mm
Package Level 1 Gross Weight:
3.5 kg
Package Level 1 EAN:
8056221002523

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Current Type:
AC
Electrical Durability:
120 cycles per hour

8000 cycle
Mechanical Durability:
240 cycles per hour

25000 cycle
Number of Poles:
4
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 3.5 W
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
CB
Rated Current (In):
100 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 65 kA

(230 V AC) 65 kA

(240 V AC) 65 kA

(380 V AC) 36 kA

(415 V AC) 36 kA

(440 V AC) 36 kA

(500 V AC) 30 kA

(525 V AC) 20 kA

(690 V AC) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 65 kA

(230 V AC) 65 kA

(240 V AC) 65 kA

(380 V AC) 36 kA

(415 V AC) 36 kA

(440 V AC) 36 kA

(500 V AC) 30 kA

(525 V AC) 20 kA

(690 V AC) 10 kA
Rated Uninterrupted Current (Iu):
160 A
Release:
Ekip Dip LIG
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC 60947
Sub-type:
XT4
Terminal Connection Type:
Fixed Circuit-Breakers
Version:
F

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC210100D0205
1SDC210099D0205
Declaration of Conformity - CE:\n9AKK106713A5529
Instructions and Manuals:\n1SDH000722R0001
1SDH000721R0505

Classifications

ETIM 6:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 7:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
