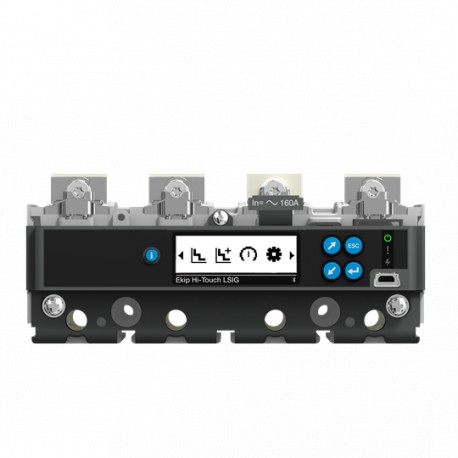

ABB 1SDA100152R1 1SDA100152R1 ABB Ekip Touch Measuring LSI In 160A XT2 4p View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA100152R1 ABB Ekip Touch Measuring LSI In 160A XT2 4p

1SDA100152R1

100152

ABB

1 Pcs.

Ekip Touch Measuring LSI In=160A XT2 4p SOLID-STATE RELEASE FOUR-POLE IN AC EKIP TOUCH LSIG R 160 XT2

Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

b'

General Information

Extended Product Type:
Ekip Touch Measuring LSI In=160A XT2 4p
Product ID:
1SDA100152R1
EAN:
8056221002066
Catalog Description:
Ekip Touch Measuring LSI In=160A XT2 4p
Long Description:
SOLID-STATE RELEASE FOUR-POLE IN AC EKIP TOUCH LSIG R 160 XT2
\n

Ordering

EAN:
8056221002066
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
110 mm
Product Net Height:
100 mm
Product Net Depth / Length:
150 mm
Product Net Weight:
1 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
100 mm
Package Level 1 Depth / Length:
150 mm
Package Level 1 Gross Weight:
1.1 kg
Package Level 1 EAN:
8056221002066

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Configuration Type:
Loose or configurable
Current Type:
AC
Number of Poles:
4
Order Multiple:
1 piece
Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
ACC
Rated Current (In):
160 A
Release:
Ekip Touch Measuring LSI
Release Type:
EL
Standards:
IEC
Suitable For:
XT2

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC210100D0205
1SDC210099D0205
Instructions and Manuals:\n1SDH002031A1002

Classifications

ETIM 6:
EC001023 - Shunt release (for power circuit breaker)
ETIM 7:
EC001023 - Shunt release (for power circuit breaker)
Object Classification Code:
Q
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
