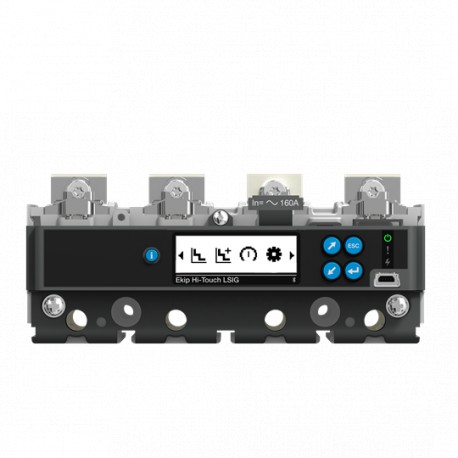

1SDA100148R1 ABB Ekip Touch LSIG In 100A XT2 4p
1SDA100148R1
100148
ABB
1 Pcs.
Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Acting as a sophisticated solid-state release mechanism, this 1SDA100148R1 ABB Ekip Touch LSIG In 100A XT2 4p enhances the operational intelligence of compatible industrial circuit breakers. Such release units are integrated into electrical panels to deliver customizable trip characteristics and accurate current monitoring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Abb
- Manufacturer part number: 1SDA100148R1
- Catalogue code: 100148
- Catalogue title: 1SDA100148R1 ABB Ekip Touch LSIG In 100A XT2 4p
- Product description: b' General Information Extended Product Type: Ekip Touch LSIG In=100A XT2 4p Product ID: 1SDA100148R1 EAN: 8056221002028 Catalog Description: Ekip Touch LSIG In=100A XT2 4p Long Description: SOLID-STATE RELEASE FOUR-POLE
- Manufacturer summary: Ekip Touch LSIG In=100A XT2 4p SOLID-STATE RELEASE FOUR-POLE IN AC EKIP HI-TOUCH LSIG R 100 XT2
More info
▲b'
General Information
Ekip Touch LSIG In=100A XT2 4p
1SDA100148R1
8056221002028
Ekip Touch LSIG In=100A XT2 4p
SOLID-STATE RELEASE FOUR-POLE IN AC EKIP HI-TOUCH LSIG R 100 XT2
Ordering
8056221002028
1 piece
85389099
Dimensions
110 mm
100 mm
150 mm
1 kg
Container Information
1 piece
110 mm
100 mm
150 mm
1.1 kg
8056221002028
Additional Information
Power Distribution
Loose or configurable
AC
4
1 piece
Accessories for Tmax XT
Accessory
ACC
100 A
Ekip Touch LSIG
EL
IEC
XT2
Certificates and Declarations (Document Number)
Classifications
EC001023 - Shunt release (for power circuit breaker)
EC001023 - Shunt release (for power circuit breaker)
Q
5. Small Equipment (No External Dimension More Than 50 cm)
