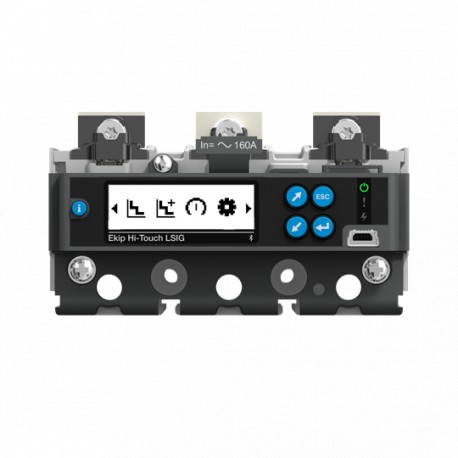

ABB 1SDA100106R1 1SDA100106R1 ABB Ekip Touch LSIG In 100A XT2 3p View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA100106R1 ABB Ekip Touch LSIG In 100A XT2 3p

1SDA100106R1

100106

ABB

1 Pcs.

Ekip Touch LSIG In=100A XT2 3p SOLID-STATE RELEASE THREE-POLE IN AC EKIP TOUCH LSIG R 100 XT2

Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This electronic trip unit, Abb part number 1SDA100106R1, provides advanced measurement and protection features for three-pole circuit breakers. Industrial operators rely on these modules for precise control over electrical distribution parameters. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Abb
  • Manufacturer part number: 1SDA100106R1
  • Catalogue code: 100106
  • Catalogue title: 1SDA100106R1 ABB Ekip Touch LSIG In 100A XT2 3p
  • Product description: b' General Information Extended Product Type: Ekip Touch LSIG In=100A XT2 3p Product ID: 1SDA100106R1 EAN: 8056221001601 Catalog Description: Ekip Touch LSIG In=100A XT2 3p Long Description: SOLID-STATE RELEASE THREE-POL; Manufacturer summary: Ekip Touch LSIG In=100A XT2 3p SOLID-STATE RELEASE THREE-POLE IN AC EKIP TOUCH LSIG R 100 XT2
  • Manufacturer summary: Ekip Touch LSIG In=100A XT2 3p SOLID-STATE RELEASE THREE-POLE IN AC EKIP TOUCH LSIG R 100 XT2

More info

▲

b'

General Information

Extended Product Type:
Ekip Touch LSIG In=100A XT2 3p
Product ID:
1SDA100106R1
EAN:
8056221001601
Catalog Description:
Ekip Touch LSIG In=100A XT2 3p
Long Description:
SOLID-STATE RELEASE THREE-POLE IN AC EKIP TOUCH LSIG R 100 XT2
\n

Ordering

EAN:
8056221001601
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
110 mm
Product Net Height:
100 mm
Product Net Depth / Length:
150 mm
Product Net Weight:
1 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
100 mm
Package Level 1 Depth / Length:
150 mm
Package Level 1 Gross Weight:
1.1 kg
Package Level 1 EAN:
8056221001601

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Configuration Type:
Loose or configurable
Current Type:
AC
Number of Poles:
3
Order Multiple:
1 piece
Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
ACC
Rated Current (In):
100 A
Release:
Ekip Touch LSIG
Release Type:
EL
Standards:
IEC
Suitable For:
XT2

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC210100D0205
1SDC210099D0205
Instructions and Manuals:\n1SDH002031A1002

Classifications

ETIM 6:
EC001023 - Shunt release (for power circuit breaker)
ETIM 7:
EC001023 - Shunt release (for power circuit breaker)
Object Classification Code:
Q
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
