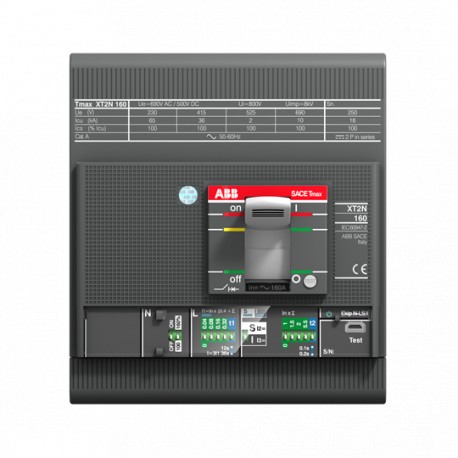

1SDA100028R1 ABB XT2N 160 Ekip Dip LIG In 100A 4p F F
1SDA100028R1
100028
ABB
1 Pcs.
XT2N 160 Ekip Dip LIG In=100A 4p F F
C.BREAKER TMAX XT2N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP DIP LIG R 100 A
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Protecting complex multi-phase power networks, the Abb 1SDA100028R1 circuit-breaker reliably trips during overloads or short circuits to prevent widespread system failures. It is standard equipment in modern industrial automation panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Abb
- Manufacturer part number: 1SDA100028R1
- Catalogue code: 100028
- Catalogue title: 1SDA100028R1 ABB XT2N 160 Ekip Dip LIG In 100A 4p F F
- Product description: b' General Information Extended Product Type: XT2N 160 Ekip Dip LIG In=100A 4p F F Product ID: 1SDA100028R1 EAN: 8056221000833 Catalog Description: XT2N 160 Ekip Dip LIG In=100A 4p F F Long Description: C.BREAKER TMAX XT
- Manufacturer summary: XT2N 160 Ekip Dip LIG In=100A 4p F F C.BREAKER TMAX XT2N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP DIP LIG R 100 A
More info
▲b'
General Information
Extended Product Type:
XT2N 160 Ekip Dip LIG In=100A 4p F F
Product ID:
1SDA100028R1
EAN:
8056221000833
Catalog Description:
XT2N 160 Ekip Dip LIG In=100A 4p F F
Long Description:
C.BREAKER TMAX XT2N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP DIP LIG R 100 A
Ordering
EAN:
8056221000833
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090
Dimensions
Product Net Width:
120 mm
Product Net Height:
130 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
1.5 kg
Container Information
Package Level 1 Units:
1 piece
Package Level 1 Width:
130 mm
Package Level 1 Height:
208 mm
Package Level 1 Depth / Length:
145 mm
Package Level 1 Gross Weight:
1.6 kg
Package Level 1 EAN:
8056221000833
Additional Information
Circuit Breaker Type to be Associated:
Power Distribution
Current Type:
AC
Electrical Durability:
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
Number of Poles:
4
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 8.1 W
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
CB
Rated Current (In):
100 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
Rated Uninterrupted Current (Iu):
160 A
Release:
Ekip Dip LIG
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC 60947
Sub-type:
XT2
Terminal Connection Type:
Fixed Circuit-Breakers
Version:
F
Certificates and Declarations (Document Number)
Declaration of Conformity - CE:\n9AKK106713A5901
Classifications
ETIM 6:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 7:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
