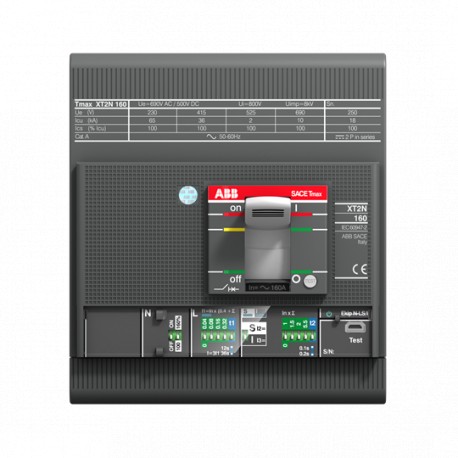

1SDA100025R1 ABB XT2N 160 Ekip Dip LIG In 10A 4p F F
1SDA100025R1
100025
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb 1SDA100025R1 moulded case circuit breaker provides essential overcurrent protection and switching capabilities within commercial and industrial power distribution networks. Devices of this type safeguard sensitive electrical circuits and connected machinery from damaging overload and short-circuit faults by automatically interrupting abnormal current flows. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Abb
- Manufacturer part number: 1SDA100025R1
- Catalogue code: 100025
- Catalogue title: 1SDA100025R1 ABB XT2N 160 Ekip Dip LIG In 10A 4p F F
- Product description: b' General Information Extended Product Type: XT2N 160 Ekip Dip LIG In=10A 4p F F Product ID: 1SDA100025R1 EAN: 8056221000802 Catalog Description: XT2N 160 Ekip Dip LIG In=10A 4p F F Long Description: C.BREAKER TMAX XT2N; Manufacturer summary: XT2N 160 Ekip Dip LIG In=10A 4p F F C.BREAKER TMAX XT2N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP DIP LIG R 10 A
- Manufacturer summary: XT2N 160 Ekip Dip LIG In=10A 4p F F C.BREAKER TMAX XT2N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP DIP LIG R 10 A
More info
▲b'
General Information
XT2N 160 Ekip Dip LIG In=10A 4p F F
1SDA100025R1
8056221000802
XT2N 160 Ekip Dip LIG In=10A 4p F F
C.BREAKER TMAX XT2N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP DIP LIG R 10 A
Ordering
8056221000802
1 piece
85362090
Dimensions
120 mm
130 mm
82.5 mm
1.5 kg
Container Information
1 piece
130 mm
208 mm
145 mm
1.6 kg
8056221000802
Additional Information
Power Distribution
AC
120 cycles per hour
8000 cycle
240 cycles per hour
25000 cycle
4
1 piece
at Rated Operating Conditions per Pole 0.1 W
SACE Tmax XT
Moulded Case Circuit Breaker
CB
10 A
8 kV
1000 V
690 V AC
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
160 A
Ekip Dip LIG
EL
N
IEC 60947
XT2
Fixed Circuit-Breakers
F
Certificates and Declarations (Document Number)
Classifications
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Q
5. Small Equipment (No External Dimension More Than 50 cm)
