ABB 1SDA076250R1 1SDA076250R1 ABB Homoplar toroid E1.2... E6.2 800A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

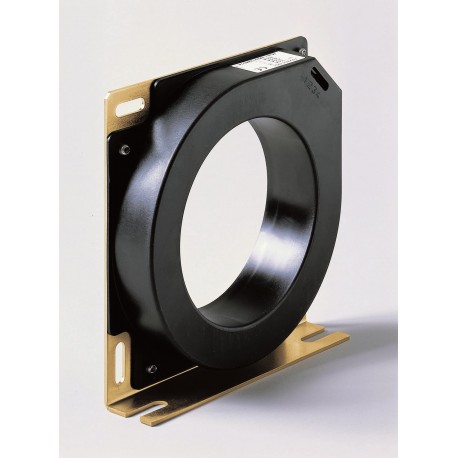

1SDA076250R1 ABB Homoplar toroid E1.2... E6.2 800A

1SDA076250R1

076250

ABB

1 Pcs.

Homoplar toroid E1.2... E6.2 800A Toroide homoplar E1.2... E6.2 800A Toroide omopol. E1.2..E6.2-XT7-XT7M 800A

Automation > Accessories/spare parts for low-voltage switch technology
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This 1SDA076250R1 ABB Homoplar toroid E1.2... E6.2 800A acts as a residual current or zero-sequence current transformer for advanced circuit breaker protection schemes. Toroidal sensors are deployed in electrical switchgear to detect earth leakage currents and coordinate ground-fault tripping functions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: ZEAHT800
  • EAN: 8015644809300
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Width: 120 mm
  • Product Net Height: 180 mm
  • Product Net Depth / Length: 225 mm
  • Product Net Weight: 1.3 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 120 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZEAHT800
EAN8015644809300
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Width120 mm
Product Net Height180 mm
Product Net Depth / Length225 mm
Product Net Weight1.3 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width120 mm
Package Level 1 Height180 mm
Package Level 1 Depth / Length225 mm
Package Level 1 Gross Weight1.4 kg
Package Level 1 EAN8015644809300
Additional Information
Product Main TypeAccessories for Emax 2, Accessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT7-XT7M, E1.2, E2.2, E4.2, E6.2
Suitable for Product ClassSACE Tmax XT, SACE Emax 2
Technical
Configuration TypeLoose or configurable
Order Multiple1 piece
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
1SDC210100D0204
Declaration of Conformity - CE9AKK106713A5546
Instructions and Manuals1SDH001000R0507
External Classifications and Standards
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10EC002498 - Accessories/spare parts for low-voltage switch technology
IDEA Granular Category Code (IGCC)4189 >> Torroidal Current Transformers
UNSPSC39121032
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371392

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
