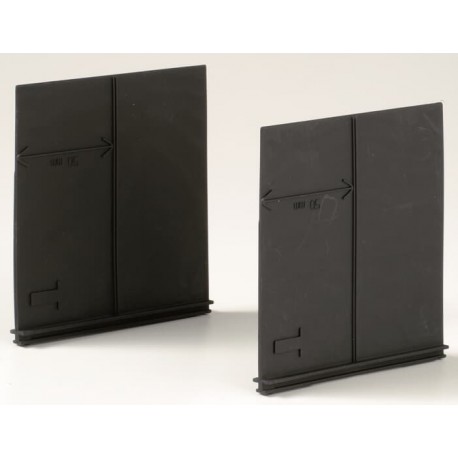

1SDA076169R1 ABB PB Sep. 3pcs phases. E2.2.. E6.2 W FP 4P
1SDA076169R1
1SDA076169R1
ABB
1 Pcs.
Automation > Phase barrier plate
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB PB Sep. 3pcs phases. E2.2.. E6.2 W FP 4P serves as a phase separation accessory designed for large draw-out circuit breakers in heavy-duty switchgear. These separators maintain required air clearances and prevent electrical tracking between high-capacity poles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZEBPBW-4
- EAN: 8015644808389
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 135 mm
- Package Level 1 Height: 75 mm
- Package Level 1 Depth / Length: 305 mm
- Package Level 1 Gross Weight: 0.515 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZEBPBW-4 |
| EAN | 8015644808389 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 135 mm |
| Package Level 1 Height | 75 mm |
| Package Level 1 Depth / Length | 305 mm |
| Package Level 1 Gross Weight | 0.515 kg |
| Package Level 1 EAN | 8015644808389 |
| Additional Information | |
| Product Main Type | Accessories for Emax 2, Accessories for Emax 3 |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | E2.2 |
| E4.2 | |
| E6.2 | |
| E2.3 | |
| E4.3 | |
| E6.3 | |
| Suitable for Product Class | SACE Emax 2 |
| SACE Emax 3 | |
| Technical | |
| Configuration Type | Loose or configurable |
| Standards | IEC/UL |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0204 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| 9AKK106713A5545 | |
| 9AKK106713A5544 | |
| Instructions and Manuals | 1SDH001000R0810 |
| External Classifications and Standards | |
| ETIM 9 | EC002273 - Phase barrier plate |
| ETIM 10 | EC002273 - Phase barrier plate |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27400614 |
