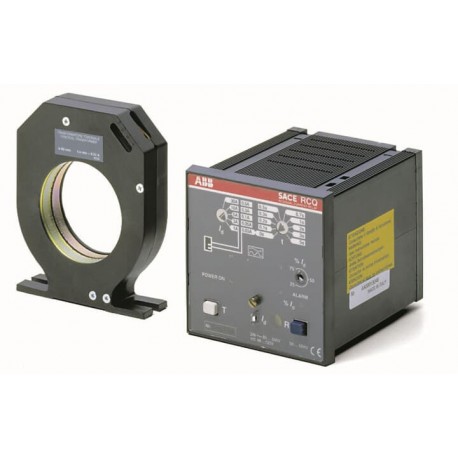

ABB 1SDA069390R1 1SDA069390R1 ABB RCQ020/P 110-690Vca/110-125Vcc S/TOROIDE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA069390R1 ABB RCQ020/P 110-690Vca/110-125Vcc S/TOROIDE

1SDA069390R1

069390

ABB

1 Pcs.

RCQ020/P 110-690Vca/110-125Vcc S/TOROIDE RCQ020/P 110-690Vac/110-125Vdc NO TOR

Automation > Accessories/spare parts for low-voltage switch technology
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB RCQ020/P 110-690Vca/110-125Vcc S/TOROIDE (1SDA069390R1) acts as a residual current release unit designed to monitor electrical circuits for earth-fault currents and trigger protective tripping mechanisms. Such devices are widely deployed in industrial switchboards to protect distribution networks and connected machinery.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • E-Number (Norway): 4381657
  • EAN: 8015644701307
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.538 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Gross Weight: 0.638 kg
  • Package Level 1 EAN: 8015644701307
  • Product Main Type: Accessories for Emax 2, Accessories for Tmax XT
  • Product Name: Accessory

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
E-Number (Norway)4381657
EAN8015644701307
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.538 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Gross Weight0.638 kg
Package Level 1 EAN8015644701307
Additional Information
Product Main TypeAccessories for Emax 2, Accessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT1
XT2
XT3
XT4
XT5
XT6
XT7-XT7M
T1
T2
T3
T4
T5
T6
T7
Technical
Configuration TypeLoose or configurable
Order Multiple1 piece
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0203
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000708R0001
External Classifications and Standards
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10EC002498 - Accessories/spare parts for low-voltage switch technology
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371390

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
