View larger
Images are for illustrative purposes only. Please refer to data sheet for details

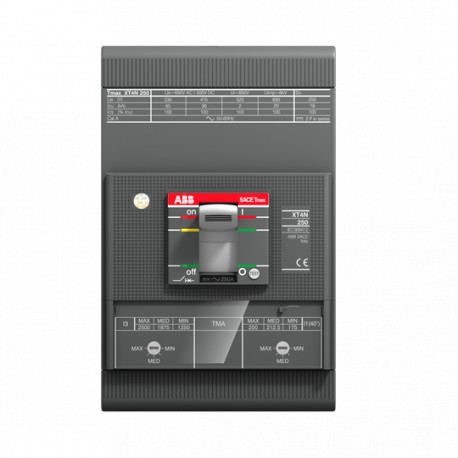

1SDA068375R1 ABB CIRCUIT BREAKER TMAX XT4L 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELE..
1SDA068375R1
068375
ABB
1 Pcs.
CIRCUIT BREAKER TMAX XT4L 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 160 I3=800...1600 A
XT4L160 TMA R160 Im1600 3P F F
XT4L 160 TMA 160-1600 3p F F
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Ordering
| EAN: | 8015644022815 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
Dimensions
| Product Net Width: | 105 mm |
| Product Net Height: | 160 mm |
| Product Net Depth / Length: | 82,5 mm |
| Product Net Weight: | 2,05 kg |
Container Information
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 145 mm |
| Package Level 1 Height: | 210 mm |
| Package Level 1 Depth / Length: | 168 mm |
| Package Level 1 Gross Weight: | 2.5 kg |
| Package Level 1 EAN: | 8015644022815 |
Additional Information
| Circuit Breaker Type to be Associated: | Power distribution |
| Current Type: | AC/DC |
| Electrical Durability: | 120 cycles per hour 8000 cycle |
| Mechanical Durability: | Nr. Operations 240 cycles per hour Nr. Operations 25000 cycle |
| Number of Poles: | 3 |
| Opening Time: | CB with SOR 15 ms CB with UVR 15 ms |
| Order Multiple: | 1 piece |
| Power Loss: | at Rated Operating Conditions per Pole 8.88 W |
| Product Main Type: | SACE Tmax XT |
| Product Name: | Moulded Case Circuit Breaker |
| Product Type: | CB |
| Rated Current (In): | 160 A |
| Rated Frequency (f): | 50 / 60 Hz |
| Rated Voltage (Ur): | 690 V |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii): | 1600 A |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | 690 V AC 500 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics): | (220 V AC) 150 kA (230 V AC) 150 kA (240 V AC) 150 kA (380 V AC) 120 kA (415 V AC) 120 kA (440 V AC) 100 kA (500 V AC) 60 kA (525 V AC) 50 kA (690 V AC) 20 kA (250 V DC) 2 Poles in Series 85 kA (500 V DC) 2 Poles in Series 85 kA (500 V DC) 3 Poles in Series 85 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (220 V AC) 150 kA (230 V AC) 150 kA (240 V AC) 150 kA (380 V AC) 120 kA (415 V AC) 120 kA (440 V AC) 100 kA (500 V AC) 60 kA (525 V AC) 50 kA (690 V AC) 20 kA (250 V DC) 2 Poles in Series 85 kA (500 V DC) 2 Poles in Series 85 kA (500 V DC) 3 Poles in Series 85 kA |
| Rated Uninterrupted Current (Iu): | 160 A |
| Release Type: | TM |
| Setting Range: | 112...160 A |
| Standards: | IEC |
| Sub-type: | XT4 |
| Terminal Connection Type: | Fixed Circuit-Breakers Front |
| Version: | F |
Certificates and Declarations (Document Number)
| Data Sheet, Technical Information: | 1SDC210033D0204 |
| Declaration of Conformity - CE: | 9AKK106713A5529 |
| Environmental Information: | 1SDL000190R0001 |
| GL Certificate: | 1SDL000163R0095 |
| Instructions and Manuals: | 1SDH000722R0001 |
| LR Certificate: | 1SDL000163R0100 |
Classifications
| ETIM 4: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 7: | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code: | Q |
| UNSPSC: | 39120000 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
